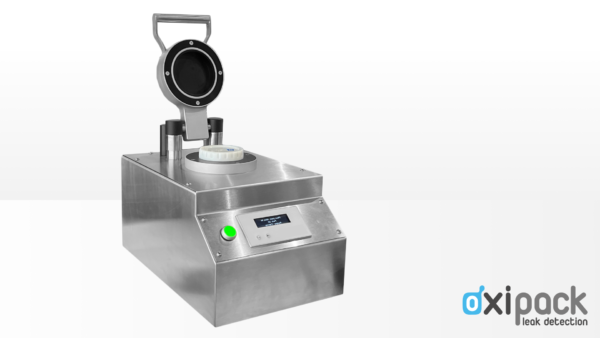

MULTI LEAK TESTER (MLT) – OXIPACK

Brand:

Category:

The Oxipack Multi Leak Tester (MLT) offers a versatile and efficient solution for testing various rigid products like pods, capsules, cans, jars, bottles, vials, and cups. Embracing a broad spectrum of dimensions and shapes, the MLT employs the vacuum decay method for leak testing, ensuring a comprehensive assessment of the entire packaging.

It’s tight fit rigid part is pre-formed to precisely fit the packaging, creating a minimal measuring space and a deep vacuum in the test chamber. This feature allows the MLT to adeptly detect both micro-leaks and larger leaks, maintaining the integrity of the packaging and seals. The MLT’s ability to adapt to different package sizes and filling weights makes it an invaluable tool for industries requiring high-precision leak testing, delivering direct, accurate, and non-destructive results.

MULTI LEAK TESTER (MLT) – OXIPACK

Features:

  • Vacuum decay method (ASTM F2338).
  • Suitable for diverse rigid products like pods, capsules, cans.
  • Easily change parts in case of multiple shaped products.

Benefits:

  • Versatile for a wide range of packaging.
  • Non-destructive and accurate leak detection.
  • Fast and efficient operation with robust design.

Technical Specifications:

  • Dimensions and Weight: 465 x 305 x 330 mm, 10 KG.
  • Materials: Powder coated steel, Anodized Aluminium, Polycarbonate, Onyx.
  • Power Supply: 100 – 240 VAC/kW.
  • Air Supply: > 5.5 – < 8 bar.
  • Compliance and IP Rating: IP40.
  • Leak Detection Method: ASTM F2338.
  • Air Consumption: 150 Nl/min.
  • Maximum Testing Capacity: 2P/M.
  • Connections: USB/Ethernet export, 24VDC logic (free programmable).
  • Packaging Type and Size: Pods, capsules, cans, jars, bottles, vials, cups.
  • Features: Non-destructive, accurate, easy to operate, direct result, robust design.
