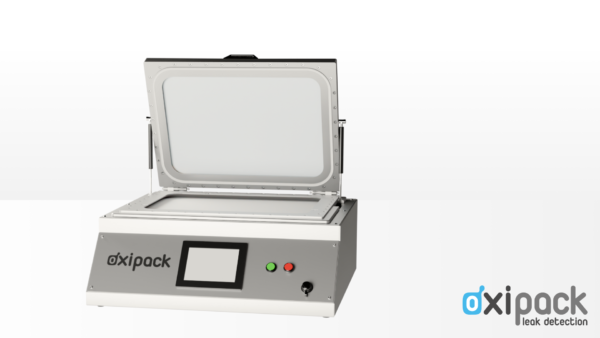

STATIONARY LEAK TESTER R&D (SLT R&D) – OXIPACK

Category:

The Oxipack Stationary Leak Tester R&D uses vacuum decay (ASTM F2338) for non-destructive testing of flexible (MAP) packaging. It ensures accurate detection of leaks, features a user-friendly touchscreen, and can test multiple packs simultaneously with instant, objective results.

STATIONARY LEAK TESTER R&D (SLT R&D) – OXIPACK

Features:

  • Non-destructive vacuum decay method (ASTM F2338).
  • Tests both large and micro leaks in a wide range of flexible (MAP) packaging.
  • Capable of testing multiple packs or sachets simultaneously for greater efficiency.
  • 7” touchscreen for easy operation, quick settings adjustments, and result monitoring.
  • Visual indicators (green/red) and precise leakage measurements for immediate, objective results.

Benefits:

  • Cost-Effective: Non-destructive method preserves packaging, reducing waste and saving resources.
  • Accurate & Reliable: Detects both large and micro leaks with precision for reliable quality control.
  • Efficient: Tests multiple packages at once, speeding up the testing process.
  • User-friendly: Intuitive touchscreen and visual indicators simplify use and decision-making.

Technical Specifications:

  • Dimensions and Weight: 665 x 705 x 333 mm (L x W x H) 40 KG
  • Materials: Stainless steel, Anodized aluminium, Polycarbonate, Rubber
  • Power Supply: 100 – 230V 50/60HZ
  • Air Supply: > 5.5 – < 8 bar / 8mm connection
  • Compliance and IP Rating: CE IP20
  • Size measuring chamber: 350 x 500 x 116 mm (L x W x H)
  • Leak Detection Method: ASTM F2338
  • Minimum Leakage: > 0,9 cm3/min
  • Maximum Testing Capacity: 2 P/M
  • Connections: USB/Ethernet export, 24VDC logic (free programmable)
  • Packaging Type and Size: MAP up to 350 x 500 x 116 mm (L x W x H)
