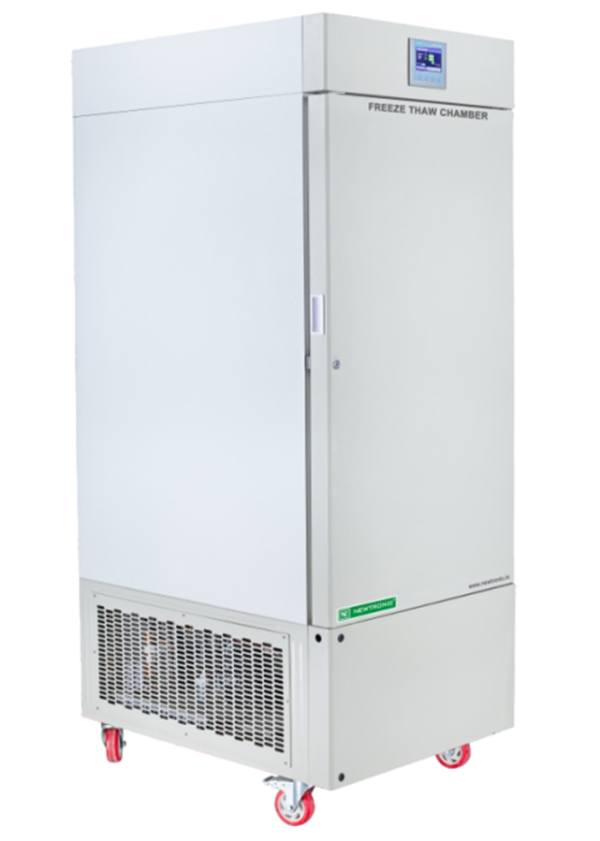

FREEZE THAW CHAMBERS – NEWTRONIC

Origin: India

Brand:

Category: Tags: , ,

Freeze Thaw Chambers are advanced equipment designed to simulate and test environmental conditions for distribution stability studies. They are essential for ensuring product quality during transportation and storage under extreme and fluctuating temperature conditions. These chambers support preformulation development and routine stability studies in accordance with ICH Q1A(R2) guidelines.

FREEZE THAW CHAMBERS – NEWTRONIC



Model: NLFT Series

Manufacturer: Newtronic

Origin: India



Key Features

  • Ethernet Connectivity: High-speed communication for effective remote operation.
  • PLC Control: Advanced programmable control for precise freeze-thaw cycling.
  • Touchscreen Interface: Easy-to-use color display for seamless control and monitoring.
  • Alarm Systems: Built-in audio and visual alarms for critical deviations.
  • Mobile Alerts: Real-time notifications to ensure operational integrity.
  • Email Alerts: Automated alerts sent directly to your inbox.
  • Safety Features: Robust construction and alarm systems ensure product safety.
  • Software Compatibility: Seamless integration with ICDAS for multi-device synchronization.
  • Regulatory Compliance: Documentation includes DQ, IQ, OQ, PQ, SOP for streamlined compliance.



Standard Equipment

  • Double-walled with PUF insulation: High thermal efficiency for precise temperature control.
  • SS304 stainless steel interior and exterior or mild steel: Durable, corrosion-resistant, and easy to maintain.
  • Stainless steel trays: Robust and hygienic for secure sample placement.
  • Metal door with gasket and lock: Provides airtight sealing to minimize temperature variations.
  • Forced air circulation: Ensures uniform temperature distribution within the chamber.
  • PU castor wheels: Smooth and reliable mobility.
  • U-shaped stainless steel tubular heaters: Efficient and uniform heating performance.
  • CFC-free cooling system: Environmentally friendly cooling with a hermetically sealed compressor, evaporator coil, and condenser.
  • PLC-based operations: Programmable Logic Controller for precise control with data logging capacity for up to 1,000 readings.
  • High-speed Ethernet communication: For remote monitoring and operational control.
  • 4-inch color touchscreen: Intuitive and user-friendly interface for programming and monitoring.
  • High-quality PT-100 temperature sensor: Ensures highly accurate temperature measurement.
  • Audio/visual alarms: Alerts for deviations in programmed parameters.
  • Documentation: Includes DQ (Design Qualification), IQ (Installation Qualification), OQ (Operational Qualification), PQ (Performance Qualification), SOP (Standard Operating Procedure), and Maintenance Manual.



Specifications

  • Temperature Range: -20°C to +50°C
  • Power Supply: 230V AC, 50 Hz (optional 60 Hz available)
  • Mode of Operation:
    • Programmable profiles to simulate freeze-thaw cycles tailored to testing needs.
    • Up to 4 temperature settings per cycle:
      • Example: -20°C for 48 hours, +5°C for 24 hours, +25°C for 72 hours, +40°C for 120 hours.
    • Supports repetition of programmed cycles for extended testing durations.



Optional Accessories

  • ICDAS Software: Unified software for integrating all Newtronic equipment.
  • Door Access System: Numeric or biometric access options for controlled entry.
  • Remote Alarm System: Monitors and alerts deviations for up to 4 Newtronic devices.
  • Mobile Alert System: Sends alerts and updates to mobile devices for remote monitoring.



Selection Guide

Model Capacity (Liters) Internal Size (mm)

(H x W x D)

External Size (mm)

(H x W x D)

Number of Trays Tray Size (mm)

(W x D)

Approx. Weight (Kg)
NLFT7MI 200

(7 CuFt)

510 x 560 x 700 1500 x 720 x 880 2 540 x 605 175 (Equipment) / 250 (Shipping)
NLFT11MI 300

(11 CuFt)

910 x 560 x 590 1955 x 720 x 770 3 540 x 495 225 (Equipment) / 300 (Shipping)
NLFT14MI 400

(14 CuFt)

910 x 560 x 785 1955 x 720 x 965 3 540 x 690 275 (Equipment) / 350 (Shipping)
NLFT25MI 700

(25 CuFt)

1200 x 800 x 730 2120 x 960 x 960 4 780 x 635 300 (Equipment) / 375 (Shipping)
NLFT34MI 1050

(34 CuFt)

1200 x 1200 x 730 2110 x 1360 x 960 8 490 x 635 325 (Equipment) / 425 (Shipping)
NLFT54MI 1500

(54 CuFt)

1200 x 1500 x 830 2110 x 1660 x 1060 8 660 x 735 350 (Equipment) / 450 (Shipping)
