HIGH-SPEED TABLET PRESS – FLUIDPACK

Origin: India

Brand:

Category: Tags: ,

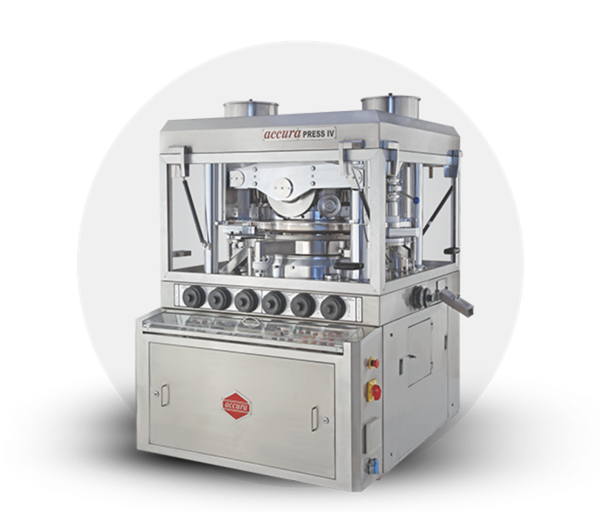

The high-speed tablet press IV is a double rotary tablet press designed for large-scale tablet production. With advanced features and compliance with cGMP standards, the machine ensures precision, reliability, and operational safety, making it suitable for industries such as pharmaceuticals, nutraceuticals, chemicals, and food production.

HIGH-SPEED TABLET PRESS – FLUIDPACK



High-speed tablet press IV

Manufacturer: Fluid Pack

Origin: India



Key features

  1. High output capacity
    • Delivers up to 540,000 tablets per hour, depending on the model and material characteristics.
  2. cGMP-compliant design
    • Square design ensures hygiene and ease of cleaning, adhering to Good Manufacturing Practices.
  3. Pre-compression functionality
    • Improves tablet quality by reducing air entrapment and increasing hardness uniformity.
  4. A.C. variable frequency drives
    • Allows precise synchronization of speed and feed for both the main motor and force feeding motors.
  5. Electromagnetic clutch
    • Ensures smooth and efficient operation during production.
  6. Bottom-driven force feeding system
    • Provides consistent and accurate material feeding for uniform compression.
  7. Safety features
    • Transparent acrylic guards with interlock switches ensure operational safety.
    • Polished stainless steel (SS 304) lower guards enhance durability and hygiene.
  8. Optional features
    • Two-layer tablet attachment for versatile production.
    • PLC with color MMI touch screen for enhanced monitoring and control.
    • Motorized hydraulic power pack for pressure adjustments and overload release.



Specifications

Feature Press IV-45 Press IV-61 Press IV-75 Press IV-25 SLG Press IV-35 SLG
Number of stations 45 61 75 25 35
Tooling type D B BB slugging slugging
Output (tablets/hour) 65,000–325,000 87,840–439,200 108,000–540,000 36,000–105,000 50,400–145,000
Max operating pressure 10 tons 6.5 tons 6.5 tons 12 tons 12 tons
Pre-compression pressure 1 ton 1 ton 1 ton 1 ton 1 ton
Depth of fill 20 mm 17.4 mm 17.4 mm 30 mm 30 mm
Max tablet diameter 25 mm 16 mm 11.1 mm 40 mm 30 mm
Total power 8.75 kW / 11.7 HP 8.75 kW / 11.7 HP 8.75 kW / 11.7 HP 12.48 kW / 16.7 HP 12.48 kW / 16.7 HP
Net weight 3800 kg 3800 kg 3800 kg 4150 kg 4150 kg



Advanced features

  1. Auto force rejection
    • Automatically rejects tablets that fall outside the prescribed compaction force range.
  2. Load cell integration
    • Measures compression force with high accuracy during production.
  3. Auto sampling
    • Configurable for time or punch revolution-based sampling.
  4. SCADA integration
    • Provides real-time monitoring, data logging, and advanced control via a 15-inch industrial PC touch screen.



Applications

  1. Pharmaceuticals
    • Production of medical tablets with precise dosages and uniformity.
  2. Nutraceuticals
    • Manufacturing dietary supplements and herbal tablets.
  3. Chemicals
    • Producing industrial chemicals, detergents, and catalysts in tablet form.
  4. Food and confectionery
    • Producing effervescent tablets, mints, and other edible tablets.



The high-speed tablet press IV offers an efficient, reliable, and customizable solution for large-scale tablet production. Its robust design, advanced features, and compliance with global standards make it an excellent choice for manufacturers in various industries.
