KEY FEATURES:
- Direct measurement with time-to-stop function
- User and locked modes
- Data recording and USB transfer
- Torque gauge displayed on screen
- External temperature probe (optional)
- Display of viscosity limits according to spindle and speed
- Speed or shear rate control
VISCOMETER MODELS:
| Product Code | Model Description | Viscosity Range (mPa.s) |
| N600000 | B-ONE PLUS with RV-2 to RV-7 spindles (standard stand) | 200 to 240M |
| N600200 | B-ONE PLUS with KU 1–10 spindle (standard stand) | 40 to 140KU |
| N600009 | B-ONE PLUS with RV-2 to RV-7 spindles (rack stand) | 200 to 240M |
| N600300 | B-ONE PLUS LR with LV-1 to LV-4 spindles (standard stand) | 15(*1) to 22M |
| N600309 | B-ONE PLUS LR with LV-1 to LV-4 spindles (rack stand) | 15(*1) to 22M |
(*1) Can reach 1 mPa.s when using MS ULV measuring system.
COMPATIBLE MEASURING SYSTEMS:
- MS-RV, MS-LV, MS-BV, MS-VANES, MS-KREBS, MS-SV, MS-ULV, MS-DIN
COMPATIBLE TEMPERATURE CONTROLLERS:
- EVA LR, EVA MS DIN, RT-1 PLUS
OPTIONS & ACCESSORIES:
- Carrying case
- External temperature probe
- HELIPRO stand
- Barcode reader
- Bayonet spindle rack
- Touch screen protector
- Viscosity standard oils
- Small volume measurement kit
- THERMOCELL kit
- GuardLeg
TECHNICAL SPECIFICATIONS:
Instrument Type: Springless rotational viscometer with 7’’ touch screen
Rotation Speeds: Unlimited number of speeds between 0.3 and 250 rpm
Torque Range:
- Standard version: 0.05 to 13 mNm
- LR version: 0.005 to 0.8 mNm
Accuracy: ±1% of full scale
Repeatability: ±0.2%
Display Information:
- Viscosity (cP / Poise or mPa.s / Pa.s)
- Speed – Shear rate – Torque (% / mNm)
- Shear stress – Time – Temperature (optional)
Supported Languages: French / English / Russian / Spanish / Turkish / German / Italian / Korean / Portuguese / Ukrainian
Power Supply: 90–240 VAC, 50/60 Hz
Connectivity: USB port
Dimensions and Weight:
- Head: D115 x H243 x W138 mm
- Stand: L340 x W305 x H70 mm
- Stainless steel rod: 500 mm length
- Weight: 6.1 kg
STANDARD PACKAGE INCLUDES:
- 4 LV spindles or 6 RV spindles or KU 1–10 spindle
- 1 standard stand or 1 rack stand
- 1 user manual
- 1 calibration and verification certificate

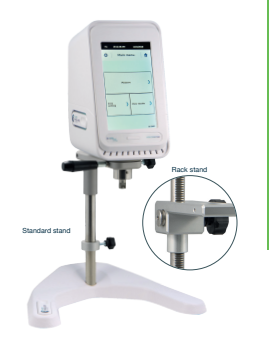

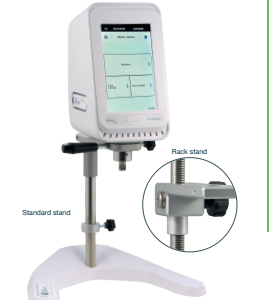

AVAILABLE STANDS:
- Standard stand
- Rack stand
