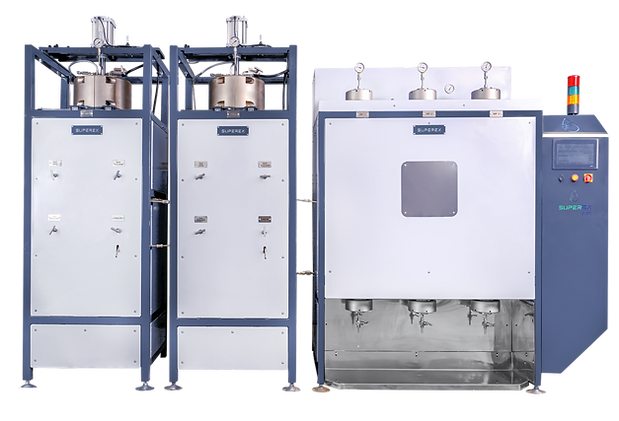

SUPERCRITICAL CO₂ EXTRACTION SYSTEM P-60-SUPEREX

Origin: Turkey

Brand:

Category:

The 30L extraction column system, featuring an optimized design for both pilot and industrial production, delivers outstanding performance and exceptional flexibility. Equipped with fully automated technology—from flow control and temperature regulation to CO2 recycling—this product ensures smooth operation and cost savings. Supercritical CO2 extraction system not only enhances product quality but also optimizes the production process, making it an ideal choice for businesses aiming for efficiency and sustainability.

MODEL: P-60

SPECIFICATIONS

  • 30L or 30L + 30L Extractor column
  • Developed design for pilot and industrial scale productions,
  • 2 or 3 separator columns,
  • Connection apparatus that provides replaceable cyclone flow or liquid trapping in separators,
  • 345 bar maximum working pressure,
  • 70 C maximum operating temperature,
  • High carbon dioxide flow rate (5 kg/min)
  • Fully automatic pressure boost, gas flow and pressure reduction process,
  • High precision PID temperature control algorithm,
  • Fully automatic adaptive pressure, flow control,
  • Fully automatic liquefaction and recovery system,
  • High energy efficiency heat pump (COP=6)
