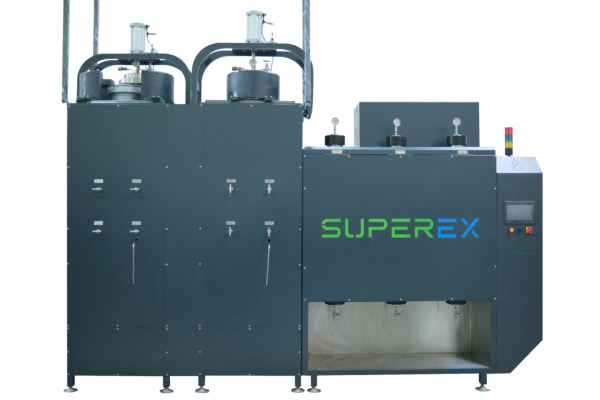

MODEL: P-100
SPECIFICATIONS
- Extraction Vessel Volume: 50 L (or 50×50 L)
- Industrial Production with Special Design
- 3 Units of 15 L Separators (Two with Pressure and Temperature Control)
- Separators have interchangeable accessories for cyclone flow or liquid trap.
- Maximum Operating Pressure: 345 bar
- Maximum Operating Temperature: 70°C
- High CO₂ Flow Rate (5 kg/min)
- Auxiliary Solvent Feeding System (500 ml/min)
- Fully Automatic Pressure Boosting, Solvent Feeding, and Pressure Reduction
- High Accuracy PID Algorithm for Temperature Control
- Fully Automatic Pressure Regulators
- Fully Automatic Adaptive CO₂ Pressure and Flow Control
- Fully Automatic Liquidation and Recirculation System for CO₂ Reuse with 99% Efficiency
- High Efficiency Heat Pump COP=6
OPTIONAL
- Maximum pressure increased to 600 bar (test pressure 900 bar).
- Maximum extraction temperature increased to 90°C.
- Additional 50 L extraction tank.
- Cooling package for either the first or third separator chosen by the operator down to -10°C for more effective fractionation.
- Bass Instruments Coriolis flow meter.
- Annual Spare Parts and Accessories Package (ZİP).
- Supercritical extraction device options.
