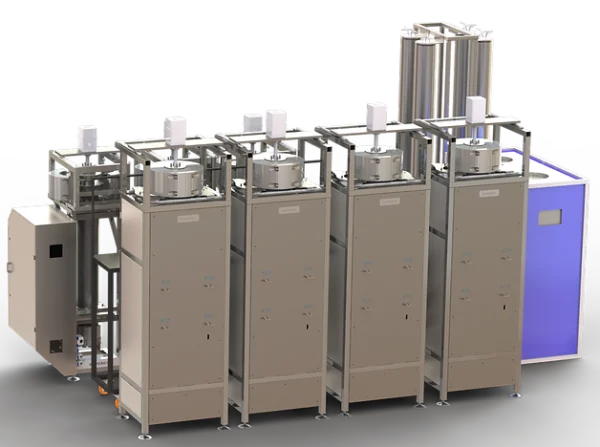

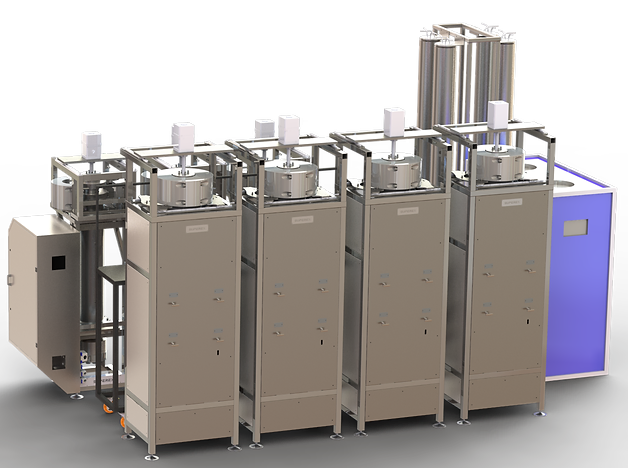

SUPERCRITICAL CO₂ EXTRACTION SYSTEM P-1000 – SUPEREX

Brand:

Category:

The Supercritical CO₂ Extraction System P-1000 offers an advanced solution for industrial production, enabling efficient and safe extraction of natural compounds. Designed with modern technology, the system operates automatically, optimizes energy use, and ensures high-quality extraction. Its precise temperature and pressure control technology allow for the processing of various raw materials, including those with high moisture content. This is an ideal choice for the pharmaceutical, food, and cosmetic industries, providing a clean and sustainable extraction process.

MODEL: P-1000

SPECIFICATION

  •  Total (4×250 Lt=2×500 Lt) 1000Lt Extractor vessels,
  •  Design developed for industrial scale production,
  •  2 or 3 Separator Columns
  •  Maximum Working Pressure Options: 345 or 500 bar
  •  Maximum Working Temperature: 70 °C
  •  Low Energy Consumption (up to 3 times lower than other SFE systems) (Patent No: 2022/020748)
  •  High Carbon Dioxide Flow Rate (50 kg/min)
  • Fully Automatic Pressure Increase, Gas Flow, and Pressure Reduction Process
  •  High-Precision PID Temperature Control Algorithm
  •  Fully Automatic Pressure Control
  •  Fully Automatic Adaptive Pressure and Flow Control
  •  Fully Automatic Liquefaction and Recovery System
  •  Ability to Extract from Products with High Moisture Content (Patent No: 2022/008231)
  •  High-Efficiency Heat Pump (COP=6)
