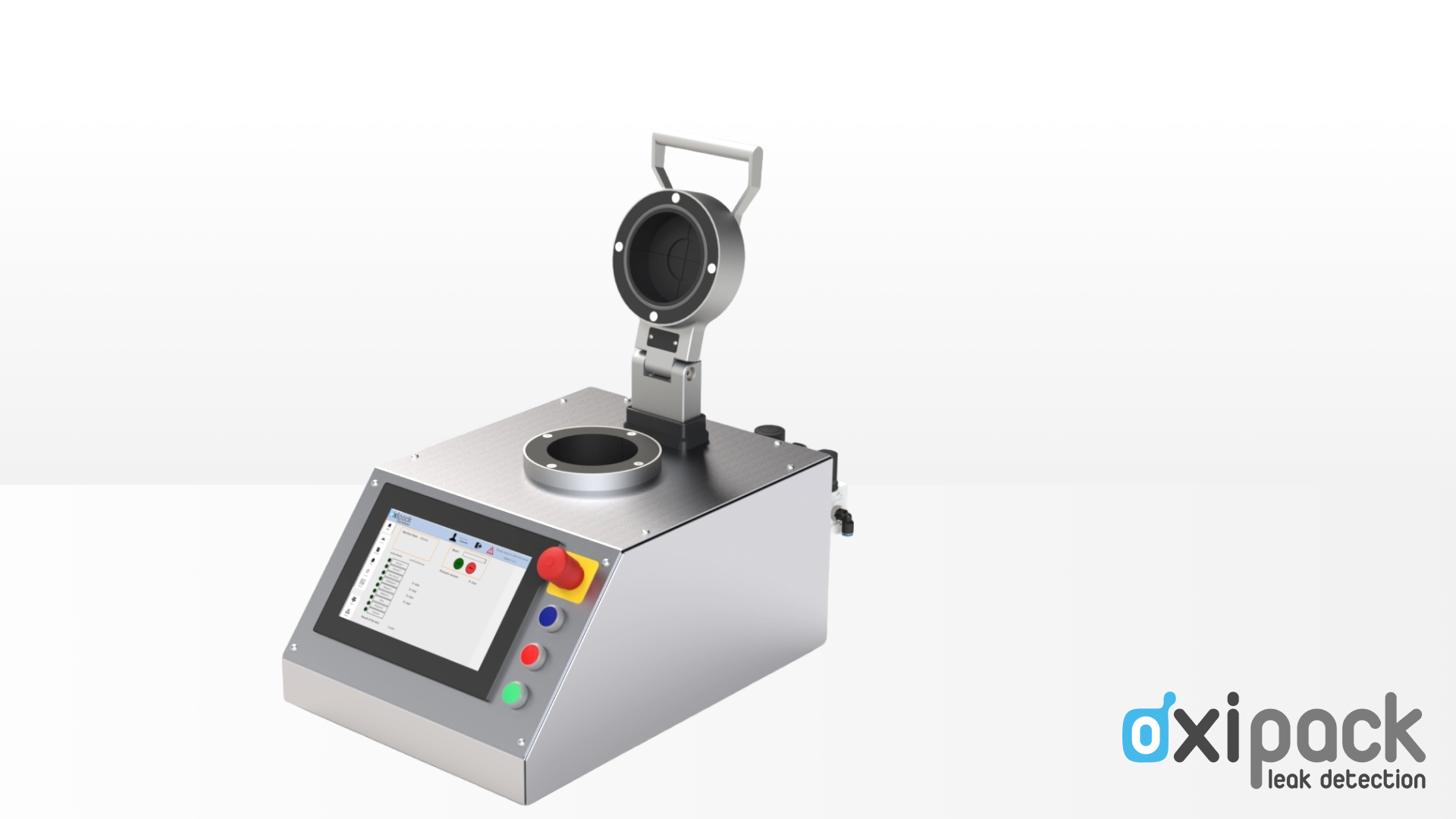

CONTAINER CLOSURE INTEGRITY TESTER (CCIT) – OXIPACK

Brand:

Category:

Designed to handle a variety of rigid products like vials, bottles, pods, capsules, cans, and jars, the Oxipack Container Closure Integrity Tester employs a vacuum decay method for effective and non-destructive leak detection

CONTAINER CLOSURE INTEGRITY TESTER (CCIT) – OXIPACK

Features:

  • High-precision vacuum decay method (ASTM F2338).
  • Suitable for pharmaceutical containers like vials and ampoules.
  • User-friendly touchscreen interface.

Benefits:

  • Ideal for sensitive pharmaceutical products.
  • No need to change test chamber for different containers.
  • Fast and accurate leak detection.

Technical Specifications:

  • Weight: 20 kg
  • Materials: Stainless steel, Anodized aluminium, Polycarbonate, Rubber, Accura Xtreme
  • Power Supply: 230V 50/60HZ
  • Air Supply: 5.5 – 8 bar
  • Compliance and IP Rating: CE IP20
  • Size Measuring Chamber: Up to 500 ml Vials
  • Leak Detection Method: ASTM F2338
  • Minimum Leakage: < 0,035 cm3/min
  • Connections: USB/Ethernet export, 24VDC logic (free programmable)
  • Packaging Type and Size: Vial, Ampoule, Bottle
  • Options: IOT Data, Barcode scanner, Printer, Line Numbers
  • Features: Non-destructive, accurate, easy to operate, direct result, robust design
