Basic Info.
| Model NO. | EDX-V63 | Element | F-Am |
| Analysis | X-ray Fluorescence | Display | Computer Screen |
| Application | Metal | Frequency | 50±1HZ |
| Performance | Automation | Function | Ore Analyzer |
| Weight | 106kg | Power Source | AC220V±22V |
| Customized | Customized | Detector | Super Fast Sdd |
| X-ray Source | 50kv/200ua | Measurement Content Range | 0.2ppm~99.99% |
| Transport Package | Pallet | Trademark | Aurispec |
| Origin | China | HS Code | 9027300090 |
Product Description
This model is expert in Mineral/Ore Analysis area and it is primarily used for:
– Mining operations: exploration, extraction, grade control
– Industrial minerals: process control and quality control
– Other fields: raw materials for cement and building materials production, refractory materials, ceramics and glass, geochemical academic research, archaeology, etc
– The new generation of Fast SDD detector, featuring a brand-new vacuum optical system and ultra-high resolution technology, achieves optimal analysis results for the following light, medium, and heavy elements as well as common oxides.
– Excellent analytical performance covers various minerals:
Iron ore: magnetite, hematite, ilmenite, siderite, etc
Copper ore: chalcopyrite, cuprite, malachite, etc
Chromium ore: chromite spinel, chromite, chromite-bismuthite, etc
Molybdenum ore: molybdenite, copper-molybdenum ore, tungsten-molybdenum ore, etc
Tungsten ore: scheelite, wolframite, cassiterite, etc
Tantalum ore: tantalite, niobite, pyrochlor, etc
Lead-zinc ore: galena, sphalerite, cerusite, etc
Nickel ore: laterite nickel ore, copper-nickel sulfide ore, etc
Bauxite and other minerals
Product Parameters

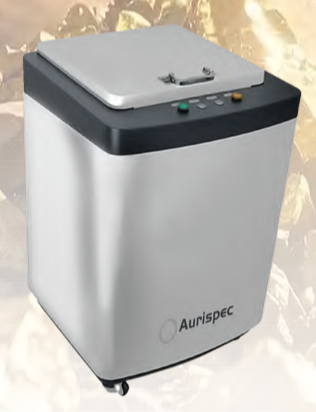

| Item | EDX-V63Benchtop XRF |
| Application scope | Mineral/Soil |
| Measurement Range | Na-U |
| Measurement content Range | 0.2 ppm–99.9% |
| Ambient Temperature | -10°C–+35°C |
| Outside Dimensions (mm) | 650 × 600 × 900 |
| Test Chamber Dimensions (mm) | 460 × 310 × 95Ø150 × 75 (vacuum) |
| Net Weight (kg) | 106 |
| Sampling process | Direct measurement |
| High Voltage Power Supply | US high-performance precision digital control (low ripple) |
| Operating system | Windows 10 |
| X-ray source | 50KV/2mA, Super thin beryllium window, Micro local spot |
| Detector | Super Fast SDD |
| Collimator + Filter | 8 sets collimator (min 0.2 mm) and 7 filters auto switch |
| Software | Aurispec SW (FP+EC) |
| Display | External display |
| Sample camera | HD camera |
| WIFI/Bluetooth | Yes |
| Power supply | 220ACV 50/60Hz |
| Other | Integrated vacuum pumpHelium-filled (optional) |
Our Advantages
– Miniaturization, high performance, high speed, easy operation, N high sensitivity, high precision analysis
– Simultaneously analyze 40 elements
– Adopting multi-collimator, multi-filter, and background subtraction patented technology
– The Peltier-cooled Super FAST SDD silicon drift detector offers excellent short-term repeatability and long-term reproducibility, as well as superior elemental peak resolution.
– It features an ultra-high counting digital multichannel circuit design, integrated dual vacuum pumping mechanisms, and an automatic vacuum stabilization system
– Standard basic parameter method software, multi-tasking, multi-window operation
– The patented thin-film filter technology effectively enhances the detection limit of light elements
