THERMAL EVAPORATOR DESK TOP TYPE (KDT-100) – KIYON

Brand:

Category: Tags: , ,
Tags: , ,

KDT-100 is a desk top type thermal evaporator specially designed for integration with glovebox systems. It features separate main and loadlock chambers to maintain vacuum stability during sample loading. With a 10.5” touch panel for full auto control, it supports co-deposition, as well as sample rotation, heating, and cooling. Ideal for high-uniformity thin film deposition applications.

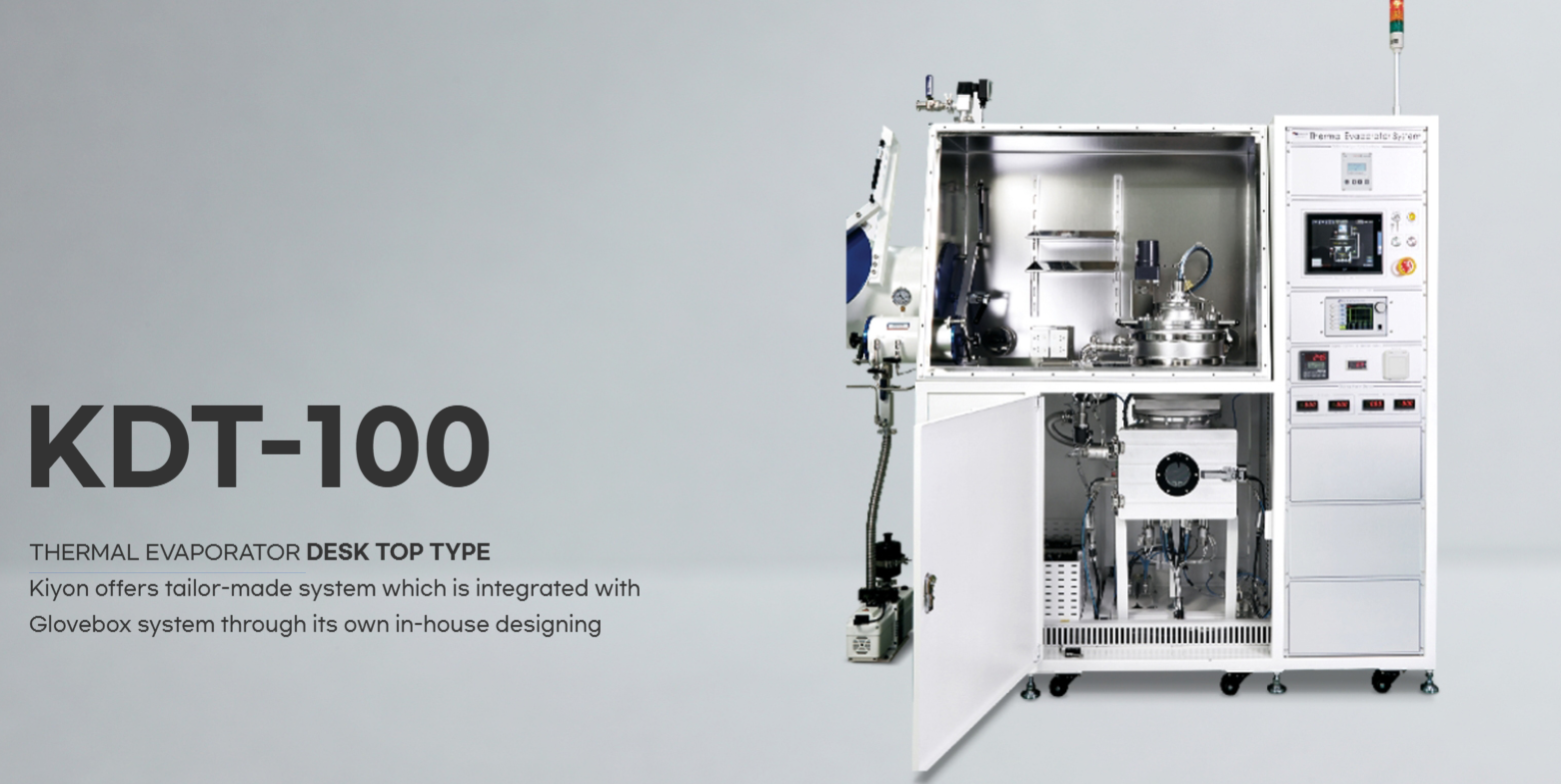

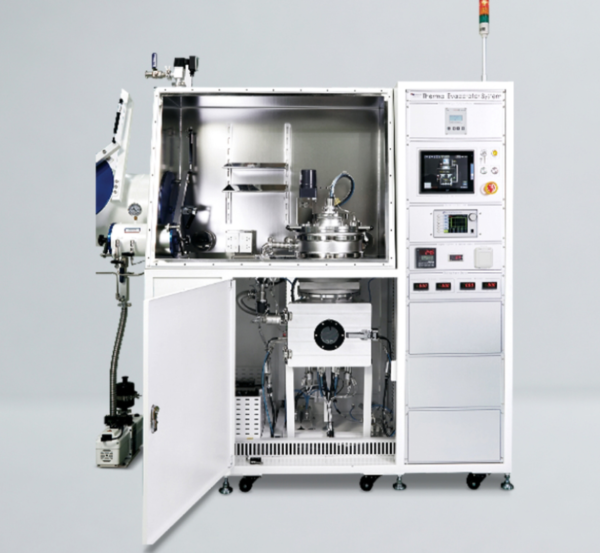

KDT-100

THERMAL EVAPORATOR DESK TOP TYPE

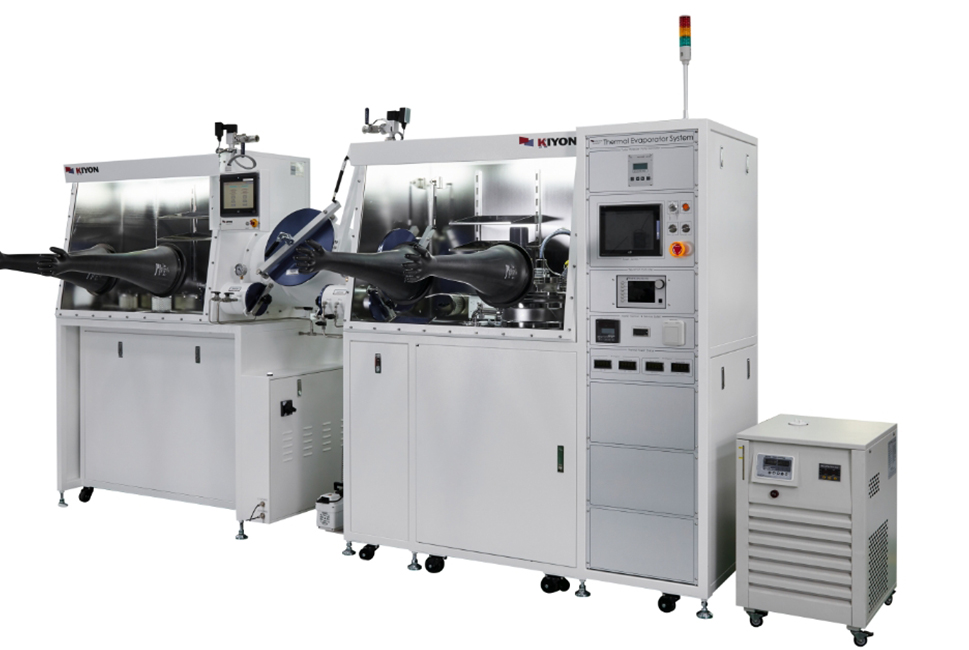

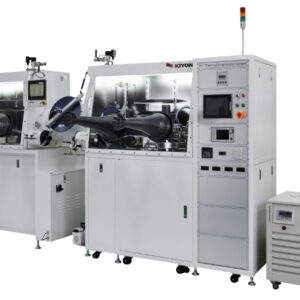

Kiyon offers tailor-made system which is integrated with
Glovebox system through its own in-house designing











Basic Composition

Characteristic

  • Vacuum Capacity: 5.0 x 10-7 Torr
  • Chamber Working Pressure: Below than 5.0 x 10-6 Torr within 30minutes
  • Film Thickness Uniformity: <+/-3% within 156mm * 156mm Glass
  • Loadlock Chamber for Sample Loading / Unloading (Without Destroying the Condition of Chamber Vacuum)
  • Main Chamber for Save the High Vacuum Pumping Time

Design

  • Sliding door type allows easy and safe sample put in/out
  • Isolated rear door for cleaning and easy maintenance

Configuration

  • Auto Control by 10.5“Touch Panel (Auto Pumping, Auto Venting, Auto System Shut Down)
  • Co-deposition available
  • Sample Rotation / heating or cooling option
