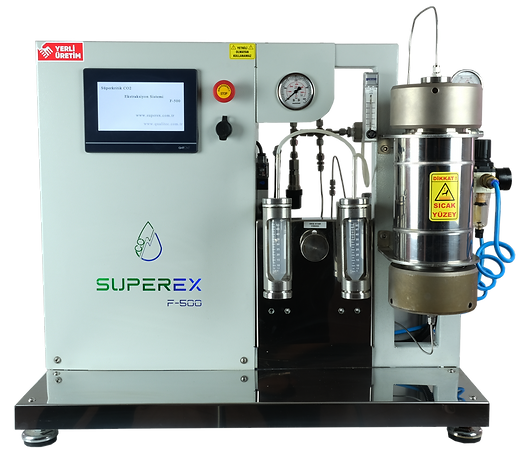

SUPERCRITICAL CO₂ EXTRACTION SYSTEM F-500-SUPEREX

Origin: Turkey

Brand:

Category:

Sistem ekstraksi CO₂ superkritis dengan kolom ekstraktor berkapasitas 500 ml untuk penggunaan laboratorium, beroperasi pada tekanan hingga 345 Bar dan suhu maksimum 70°C. Desain modernnya mengintegrasikan kontrol suhu dengan algoritma PID dan kontrol tekanan otomatis penuh, mendukung pompa ko-solven opsional, serta menggunakan keranjang sampel dari kain sintetis untuk memastikan proses ekstraksi yang presisi, aman, dan mulus. Semua permukaan yang bersentuhan dengan sampel terbuat dari baja tahan karat, menjamin higienitas optimal untuk penelitian.

MODEL: F-500

SPECIFICATION

  •  500 ml extractor column
  •  Working pressure up to 345 Bar
  •  Working temperature up to 70 °C
  •  Extraction in Continuous (Dynamic) CO2 flow mode
  •  Temperature control with PID algorithm
  •  Digital fully automatic pressure control
  •  Optional Co-solvent (10 ml/min) pump
  •  Easy sample loading
  •  Use of synthetic fabric baskets for solid samples
  • Changeable flow direction for liquid samples
  •  Possibility to take extract directly into Falcon tube
  •  Liquid trapping feature in the secondary Falcon separator observable flow rate
  •  Independent electronic and mechanical pressure safety system
  •  All surfaces in contact with food are stainless steel
  •  Smooth-honed reactor column against microbial attachments
