GLOVEBOX (KK-011AS EXTRA) – KIYON

Brand:

Category: Tags: , ,
Tags: , ,

Glovebox is designed to provide a hermetically
sealed & highly customized working space
under a very tightly controlled.

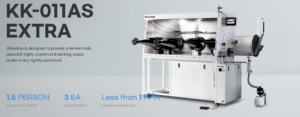

KK-011AS EXTRA

Glovebox is designed to provide a hermetically
sealed & highly customized working space
under a very tightly controlled.





  • 1.5 Person NUMBER OF USERS
  • 3 EA GLOVE PORTS
  • Less than 1 PPM OXYGEN & MOISTURE

Basic composition

CHARACTERISTIC
  • Less than 1PPM of Oxygen and Moisture concentration level inside

DESIGN
  • Stainless steel design with polycarbonate window
  • Modular box design

CONFIGURATION
  • Large antechamber with sliding tray
  • Mini-Antechamber
  • Embedded inert gas purification system
  • Vacuum pump
  • High efficiency box filters
  • Casters and leveling feet
  • Glovebox is designed to provide a hermetically sealed&highly customized working space under a very tightly controlled.
  • Glovebox expansion features include additional antechambers for flow processes, cold storage freezers,
    process vacuum ovens and furnaces and full line of accessories.

Specification

Basic Composition Size 1,800(L) x 900(H) x 780(D) mm
Material SUS304
Windows Poly-Carbonate PC or Safety Glass
Glove Butyl Rubber 1.5 Pair
External Light 1ea(LED)
Service Port KF(NW40): 2ea
Leak Test 0.05 vol%/hr According to ISO 10648-2
Antechamber Size 390 x 600 mm
Vacuum Capacity 1 x 10-3 torr
Tray 220 x 580 mm
Mini-Antechamber Size 150 x 290 mm
Purifier System Purifity Level Less than 1 ppm O2 and H2O
Catalyst Oxygen Catalyst and Modecular sieve
PLC Automatic PLC control
Control Panel 7˚Full Color Touch Screen
Purifier Regeneration Auto Regeneration programmed on PLC
Blower Speed Control Max. 63 CFM (1.78m3/min)
Vacuum Pump 180 ℓ/min
Stand Size 1,800(L) × 936(H) × 780(D) mm
