THREE-ROLL MILL – ZYE

Origin: China

Brand:

Category: Tags: ,
Tags: ,

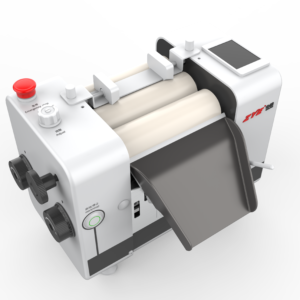

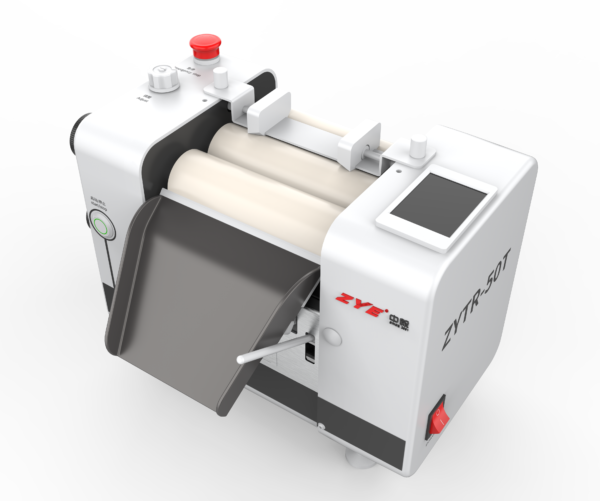

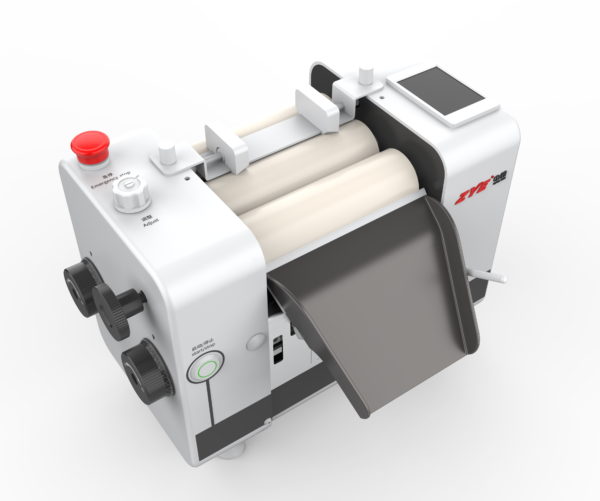

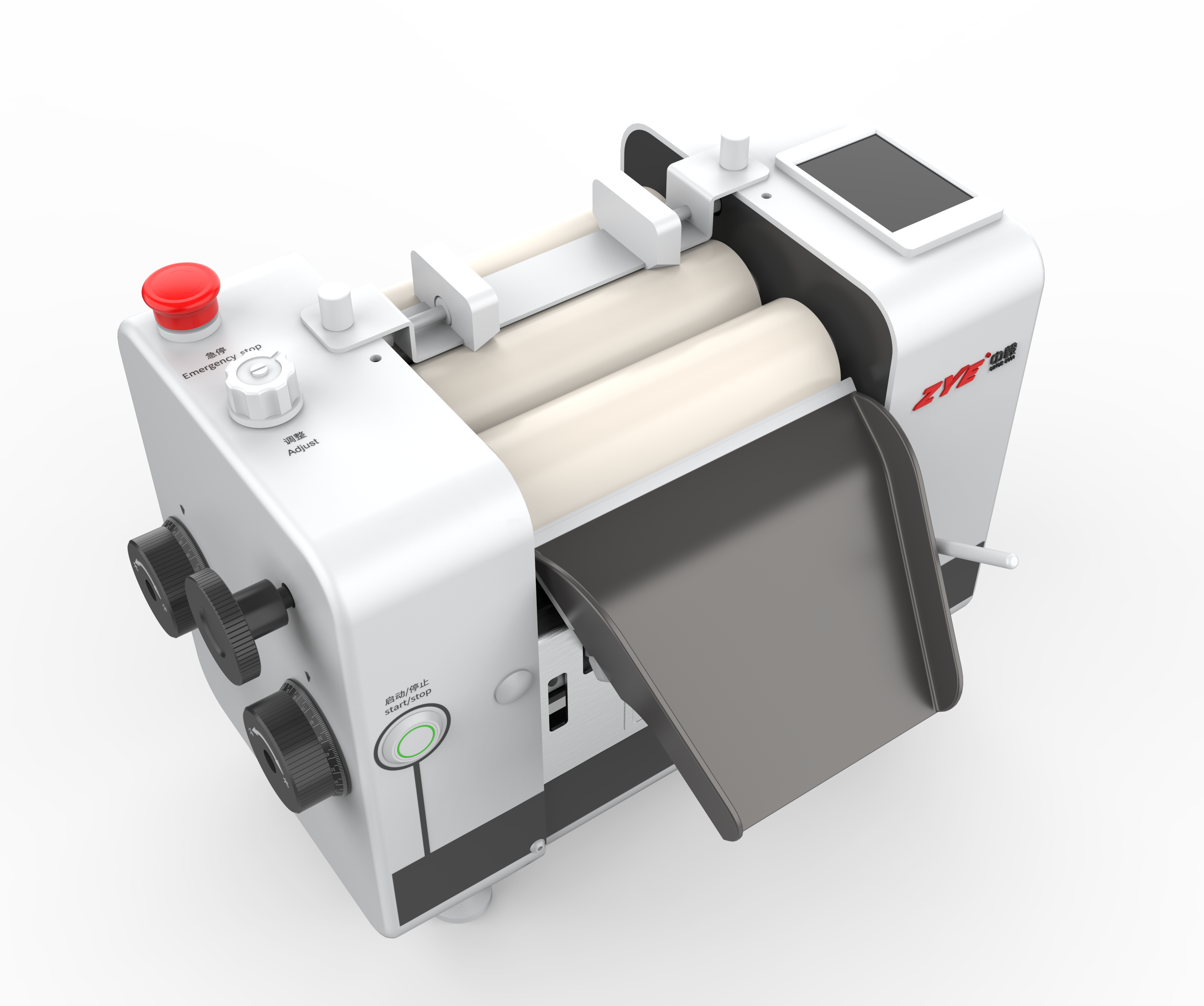

The ZYTR-120E-450 is an advanced, high-precision rolling machine, especially suitable for applications that demand exceptional surface finish and material concentricity. The machine features a modern touchscreen interface and an optional hopper, providing maximum user convenience. With its compact design and advanced technology, the device delivers high performance while ensuring top-quality output that meets the highest industry standards.

KEY FEATURES:

  • High Precision: Minimum accuracy of 1 μm, depending on the material.
  • Imported Nanoscale Ceramic Rollers
  • Easy-to-Clean Rollers
  • Optional Hopper
  • Touchscreen Control
  • Ceramic Roller Precision:
    • Concentricity: ≤ 3 microns
    • Straightness: ≤ 3 microns
    • Surface Finish: ≤ 0.3 microns

TECHNICAL SPECIFICATIONS:

  • Output: 0.5–60 L/h
  • Roller Material: Al₂O₃ / ZrO₂ / SiC / Si₃N₄
  • Scraper Material: ZrO₂ / Stainless Steel / Polyester
  • Roller Diameter: 120 mm
  • Roller Length: 450 mm
  • Transmission Ratio: 1:2.7:7.2
  • Power Configuration: Servo Motor
  • Options: Roller heating and cooling design
  • Power/Voltage: 3.5 kW, 220V / 380V (optional)
  • Dimensions: 1020 × 660 × 980 mm
  • Net Weight: Approx. 380 kg
