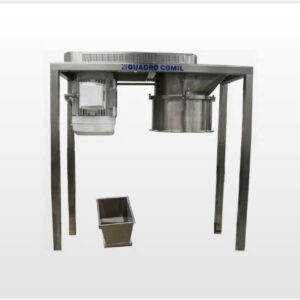

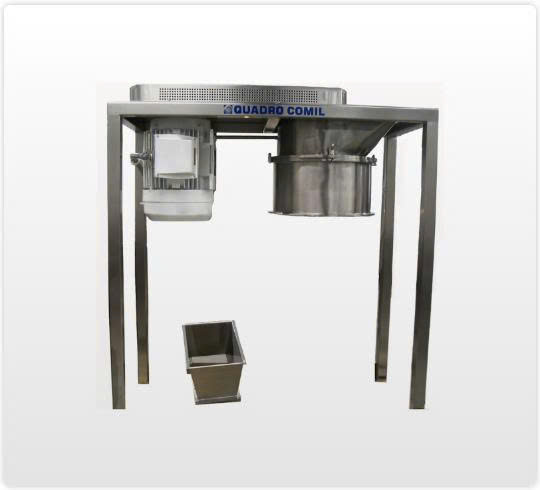

OVERDRIVEN COMIL® CONICAL MILL – QUADRO

OVERDRIVEN COMIL® CONICAL MILL – QUADRO

The Overdriven Comil® Cone Mill is a high-efficiency powder milling solution, originally invented by Quadro in 1976, specifically designed for particle size reduction, deagglomeration, dispersion, bulk density adjustments, separation, and recycling of powdered materials. This cone mill offers a simple, cost-effective design that reduces operational and maintenance costs while providing exceptional performance. It can be flexibly integrated into production lines ranging from research & development (R&D) to large-scale industrial manufacturing.

KEY FEATURES:

• Simple design, easy operation, and cost-effective maintenance.
• Flexible feeding capabilities (continuous or plug-feeding) with no capacity limitations.
• Utilizes the entire screen surface for maximum throughput.
• Low heat generation, ideal for heat-sensitive products.
• Easy cleaning, quick maintenance, and rapid component changeover.
• Environmentally friendly with minimal dust generation.

APPLICATIONS:

• OSD Pharmaceuticals
• Nutraceuticals
• Food Processing
• Chemicals
• Cannabis Processing
• API Pharmaceuticals

MAIN PRODUCT MODELS:

1. Small-scale Cone Mill: 197 Overdriven Comil®

• Gentle milling action, suitable for heat-sensitive products.
• High efficiency, low dust generation, easy maintenance and cleaning.

Specifications:

• Capacity (Wet, Screen 375Q-9.5mm): 220 kg/hr
• Capacity (Dry, Screen 094R-2.4mm): 360 kg/hr
• Capacity (Dry, Screen 040G-1.0mm): 80 kg/hr
• Motor power: 2 HP (1.5 kW)

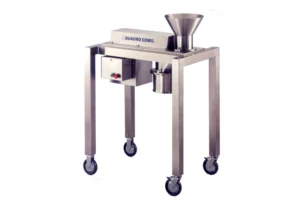

2. Mid-scale Cone Mill: 194 Overdriven Comil®

• Gentle milling action, minimal heat generation.
• Superior performance, easy cleaning and maintenance.

Specifications:

• Capacity (Wet, Screen 375Q-9.5mm): 1100 kg/hr
• Capacity (Dry, Screen 094R-2.4mm): 1750 kg/hr
• Capacity (Dry, Screen 040G-1.0mm): 400 kg/hr
• Motor power: 5 HP (4 kW)

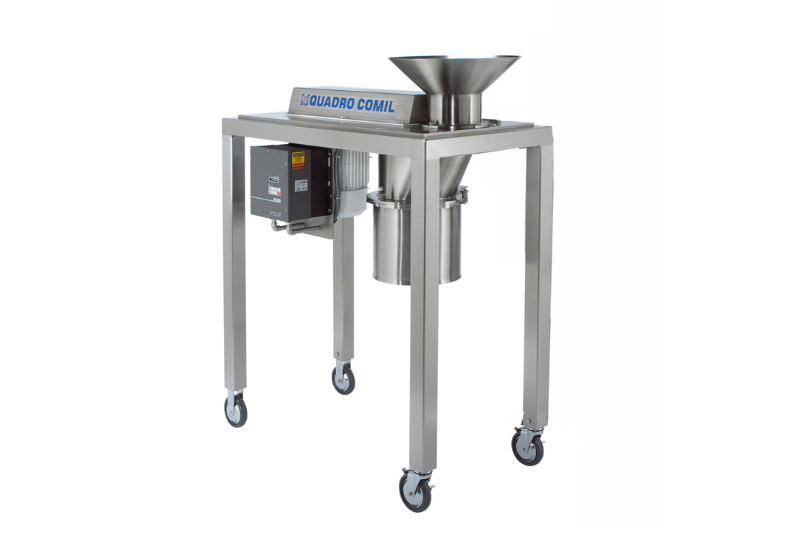

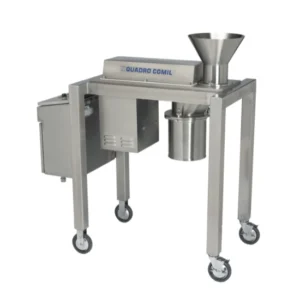

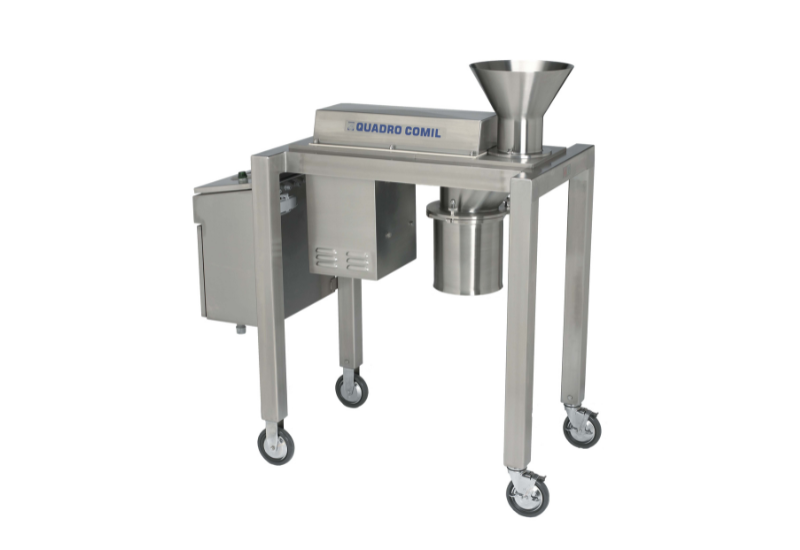

3. Production-scale Cone Mill: 196 Overdriven Comil®

• Industrial-grade milling with high efficiency.
• Easy feeding, cleaning, and reduced heat generation during processing.

Specifications:

• Capacity (Wet, Screen 375Q-9.5mm): 2200 kg/hr
• Capacity (Dry, Screen 094R-2.4mm): 3500 kg/hr
• Capacity (Dry, Screen 040G-1.0mm): 800 kg/hr
• Motor power: 10 HP (7.5 kW)

4. Large-scale Cone Mill: 198 Overdriven Comil®

• Designed specifically for high-volume production.
• Ensures safety, minimal dust generation, and low heat production.

Specifications:

• Capacity (Dry, Screen 094R-2.4mm): 7000 kg/hr
• Capacity (Dry, Screen 040G-1.0mm): 1600 kg/hr
• Motor power: 20 HP (15 kW)
