INDUSTRIAL POWDER SECURITY SCREENING FLEXSIFT – QUADRO
With its compact, inline design, the FlexSift easily integrates into your existing production process, ensuring product purity, safeguarding your brand reputation, and maintaining consistent product quality from raw material intake to final packaging.
KEY BENEFITS AND FEATURES:
- High-capacity centrifugal sifting efficiently removes foreign materials, safeguarding product integrity.
- Gentle deagglomeration without reducing original particle size.
- Easy cleaning, minimal dust generation, and quiet operation, promoting a safer and cleaner work environment.
- Nearly 100% product recovery, significantly reducing waste.
- Meets stringent FDA and cGMP requirements for pharmaceutical, food, and cosmetic industries.
INDUSTRY APPLICATIONS:
- OSD Pharmaceuticals
- API Pharmaceuticals
- Nutraceuticals
- Food Processing
- Chemical Industries
- Cannabis Processing
MAIN FLEXSIFT MODELS:

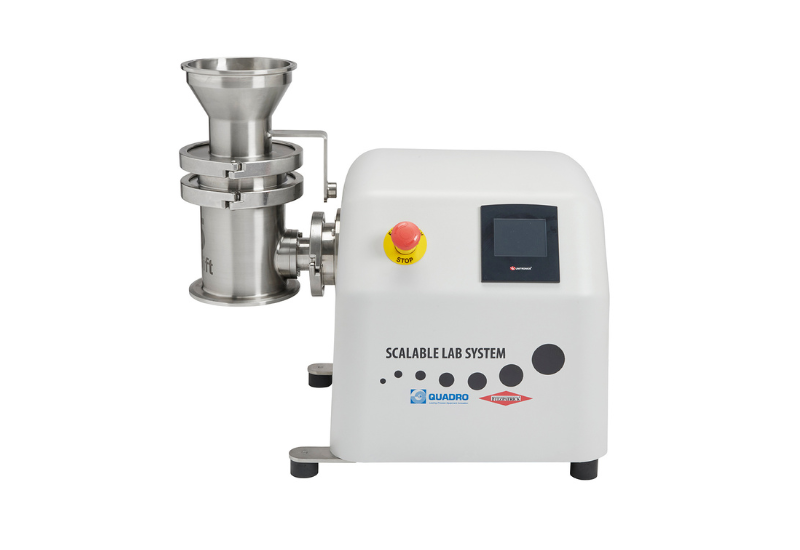

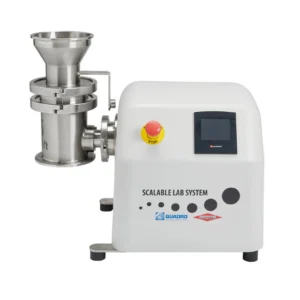

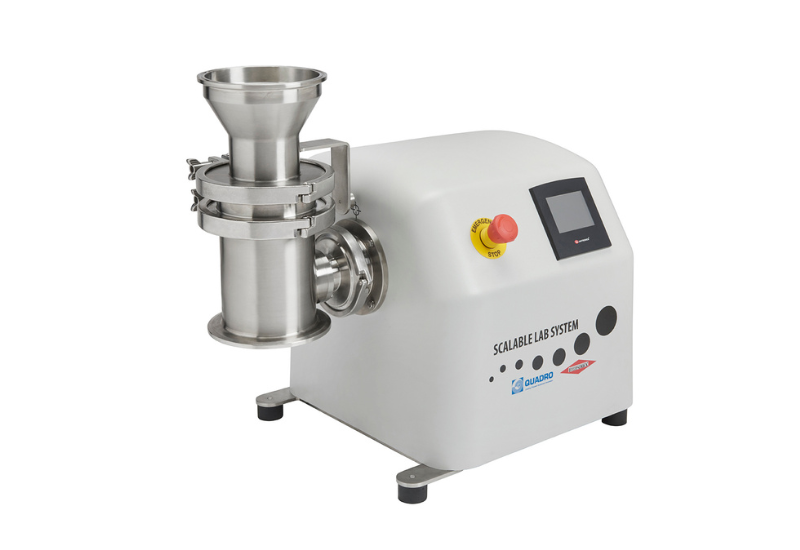

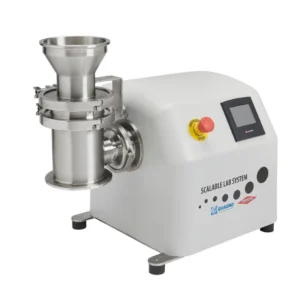

1. Lab-Scale Screening: SLS S5 FlexSift
- High screening efficiency without altering particle size.
- Minimizes airborne dust, protecting both operators and materials.

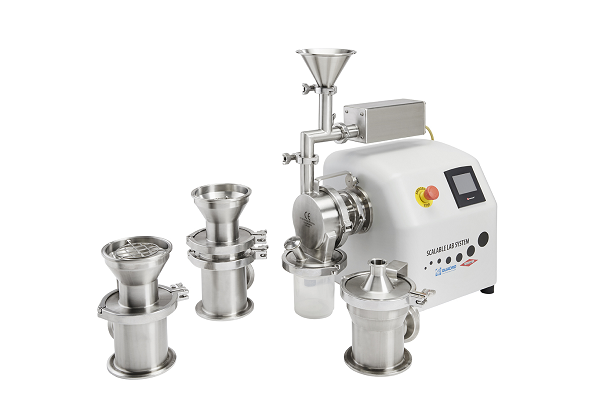

- Compatible with Quadro’s Scalable Lab System (SLS).
Technical Specifications:
- Capacity: ~500 kg/hr
- Motor power: 1 HP (0.75 kW)
- Rotational Speed: 700 – 1400 RPM
- Noise level: <80 dBA
- Screen diameter: 82.6 mm
2. Mid-Range Screening: S10 FlexSift
- Designed specifically for mid-range processing capacities.
- Effectively eliminates airborne dust and impurities, ensuring near-total product recovery.
- Adjustable height stand allows flexible installation and operation.
Technical Specifications:
- Motor power: 2 HP (1.5 kW)
- Rotational Speed: 700 – 1400 RPM
- Noise level: <80 dBA
- Screen diameter: 133.4 mm
3. Production-Scale Screening: S20 FlexSift
- Engineered specifically for high-volume industrial production.
- Maximizes product recovery and effectively removes impurities and airborne dust.

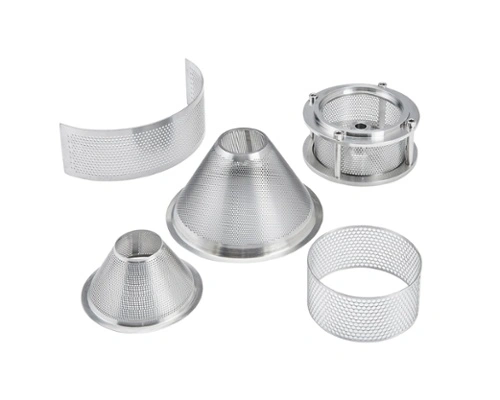

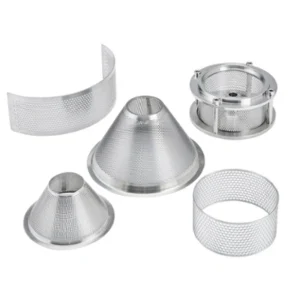

- Interchangeable screen heads to accommodate diverse production needs.
Technical Specifications:
- Motor power: 5 HP (4.0 kW)
- Rotational Speed: 700 – 1400 RPM
- Noise level: <80 dBA
- Screen diameter: 203.2 mm
