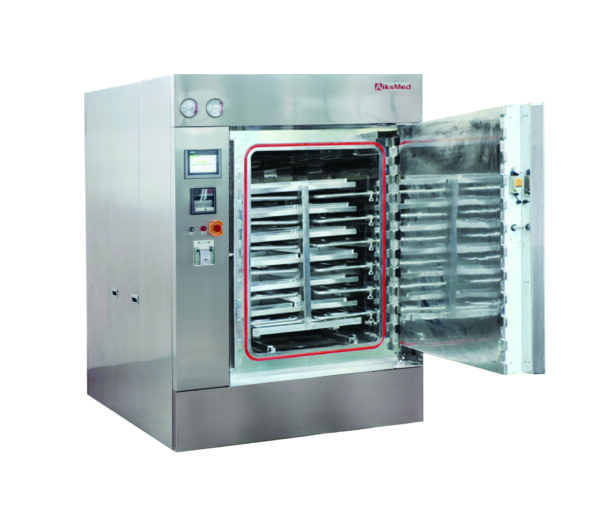

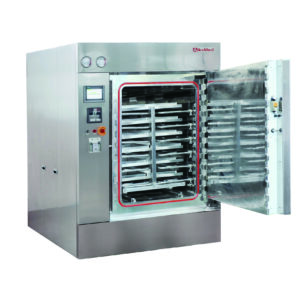

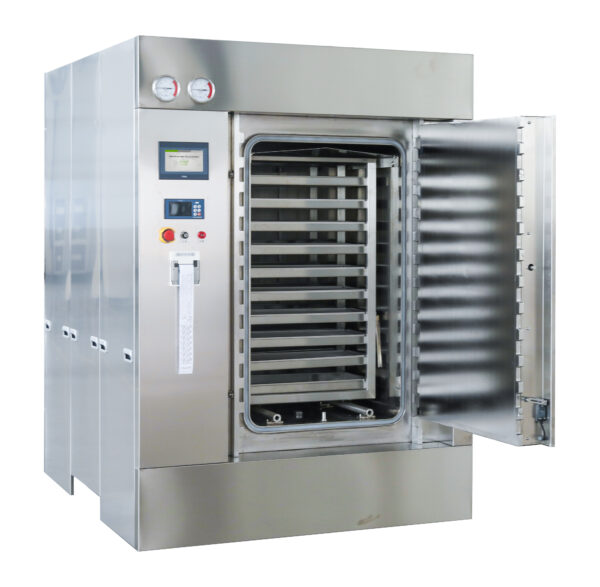

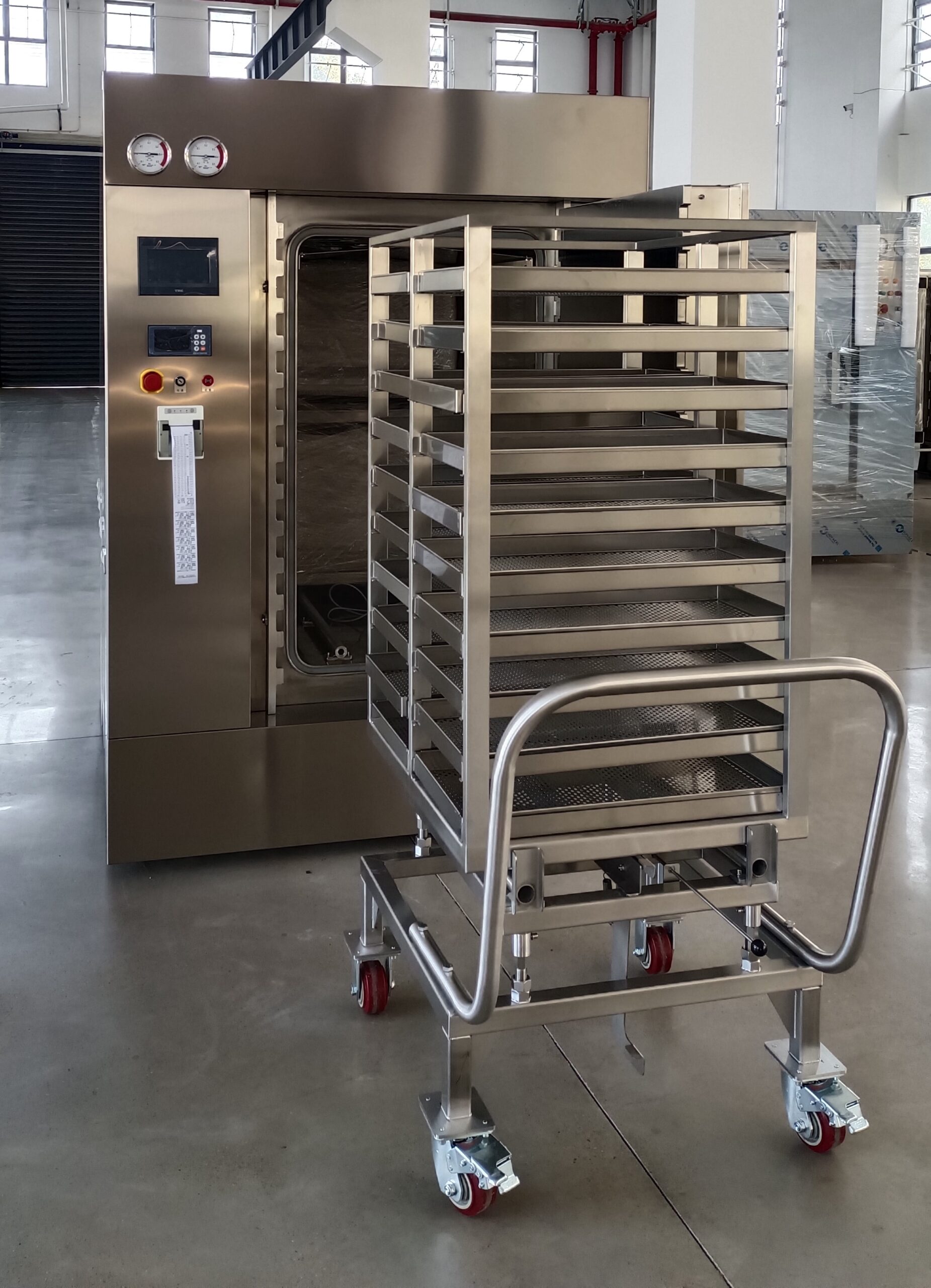

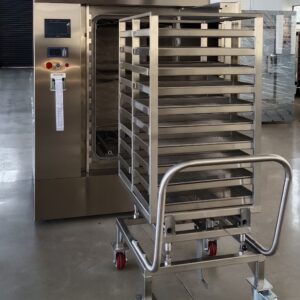

HERBAL MEDICINE STEAM STERILIZER – MZY SERIES

Origin: China

Brand:

Category:

Traditional disinfection treatment on herbal medicines are cobalt 60, ethylene oxide, alcohol, microwave, ozone and etc. However, it is difficult to ensure drug properties due to chemical residues, or the cost is expensive.

After repeated process verification, AIKSMED found steam sterilization is the most suitable method for herbal medicines MZY series chamber is horizontal rectangular structure. It is designed with a unique moisture-proof device powder agglomeration is traditional steam sterilization can be avoided.

HERBAL MEDICINE STEAM STERILIZER – MZY SERIES from AiksMed

APPLY

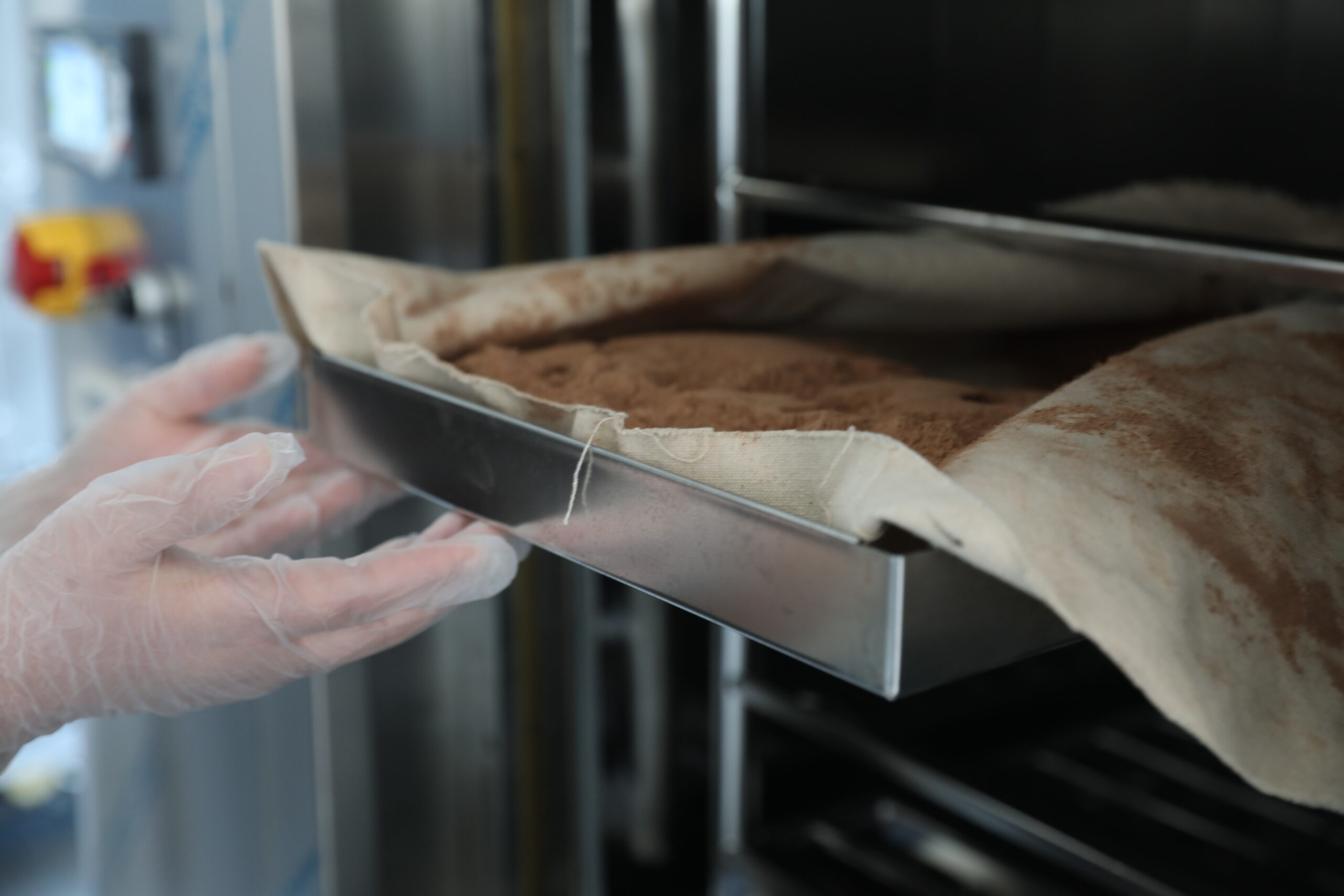

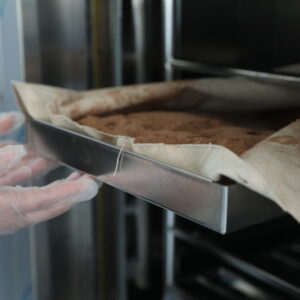

Sterilizing and drying of herbal materials and powder type, such as Gastrodia Elata, Panax notoginseng, Dendrobium, Ginseng, etc. Spices, healthy foods, cereals, fish meal, dried wild vegetables, tea leaves, etc.

FEATURES

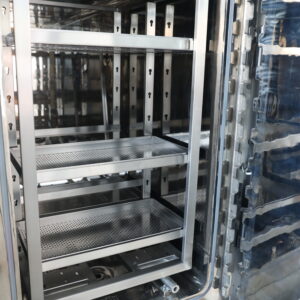

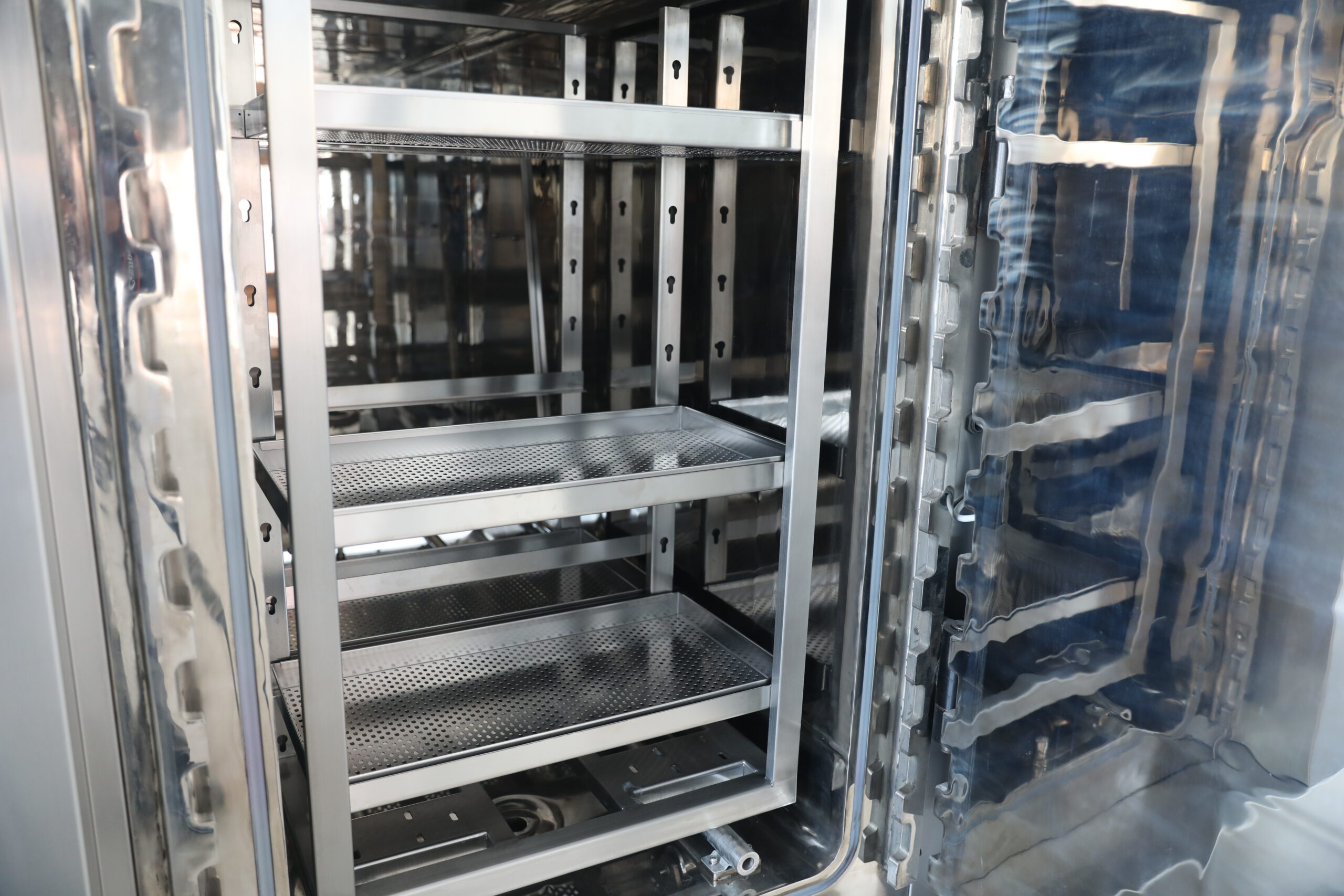

  • Rectangular chamber section, conforms to GB150, EN285
  • Hinged door, single and pass-through door for option
  • Pressure safety: Interlock device and double door interlock
  • PLC+HMI control, automatic operation, display process status, temperature, pressure, time, F0, data, printable and storable
  • Standard GMP validation port
  • Unique moisture-proof device

ACCEPTANCE AFTER STERILIZATION:

  • Mold and miscellaneous bacteria <10cfu/p
  • Powder is loose, not easy to agglomerate (different varieties, different situations)
  • Powder no change color
  • Water content of powder <5%

TECHNICAL PARAMETERS:

Design Pressure 0.1/0.3 MPa
Working Pressure 0.25 MPa
Design Temperature 144°C
Working Temperature 137°C
Max. Vacuum 0.096 MPa
Thermal Uniform ± 1°C
Steam Pressure 0.3-0.5 MPa
Water Pressure 0.15-0.35 MPa
Compressed Air Pressure 0.5-0.7 MPa

SPECIFICATION

Model

 Volume (m3) Chamber Size

(LxWxH mm)

 Overall Size (LxWxH mm) Steam

(kg)

 CA

(L)

 CW

(kg)

 Load

(kg)

 Power

(kW)

N/W

(kg)
MZY-0.36

0.36

 1000x600x600 1260x1270x1740 25 50 150 40 1.2

880
MZY-0.6

0.6

 1180x610x910 1440x1280x1940 40 60 300 80 2.4

1200
MZY-0.8

0.8

 1480x610x910 1740x1280x1940 45 60 350 100 2.4

1400
MZY-1.0

1.0

 1800x610x910 2060x1280x1940 50 60 400 120 2.4

1600
MZY-1.2

1.2

 1500x680x1180 1780x1460x2040 60 70 500 180 3.2

1700

1.2

 1500x750x1100 1780x1530x1960 60 70 500 180 3.2

1700
MZY-1.5

1.5

 1900x680x1180 2180x1460x2040 70 70 600 220 3.2

1850

1.5

 1900x750x1100 2180x1530x1960 70 70 600 220 3.2

1850
MZY-2.0

2.0

 2500x750x1100 2780x1530x1960 80 70 800 320 4.2

2400

2.0

 1700x1000x1200 2000x2000x2070 80 70 800 320 4.2

2400
MZY-2.5

2.5

 1700x1000x1500 2000x2000x2200 90 80 1000 450 4.2

2700

2.5

 2100x1000x1500 2400x2000x2200 90 80 1000 450 4.2

2700
MZY-3.0

3.0

 2500x1000x1200 2800x2000x2060 100 90 1300 550 5.0

3200

3.0

 2000x1000x1500 2800x2000x2200 100 90 1300 550 5.0

3200
MZY-4.0

4.0

 3340x1000x1200 3640x2000x2060 120 100 1500 650 5.7

3700

4.0

 2700x1000x1500 3000x2000x2100 120 100 1500 650 5.7

3700
