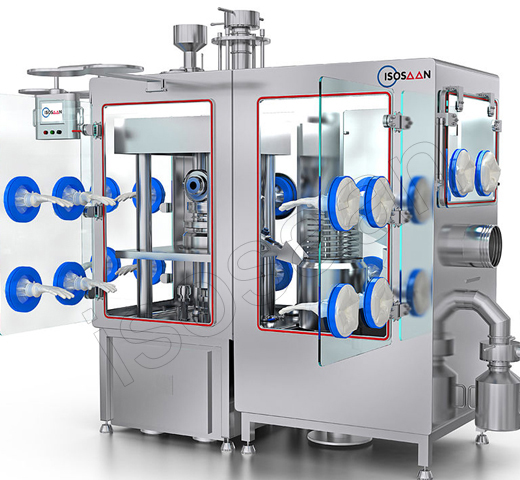

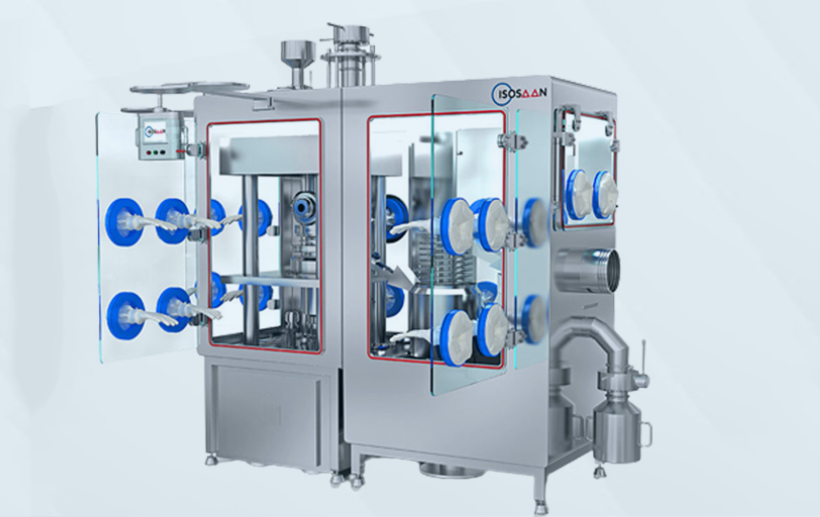

Compression / Capsule Filling Isolator

Origin: India

Brand:

Category: Tag:
Tags:

This is a Negative Pressure Isolator. This unit is used to house a special Tablet Compression Machine / Capsule filling machine that is containment compatible. IsoSaan has allies in the industry who can supply us with the required compression or capsule filling machines. These isolators are equipped with access barriers for Gloves that provides additional safety for the operator.
Ideal system design can house mono block machines. For compression machines, the system can house a single or dual rotary machines. For Capsule filling, the system can house single station or multi station machines. This Isolator is also compatible with line machine that are typically use post compression and capsule filling.
The Compression Isolator can be supplied with IsoSaans Smart LPU and IsoSaans Safe Dock assembly….. together the system ensures safe product charging assembly with zero risk for SBV assembly.

Compression / Capsule Filling Isolator

This is a Negative Pressure Isolator. This unit is used to house a special Tablet Compression Machine / Capsule filling machine that is containment compatible. IsoSaan has allies in the industry who can supply us with the required compression or capsule filling machines. These isolators are equipped with access barriers for Gloves that provides additional safety for the operator.
Ideal system design can house mono block machines. For compression machines, the system can house a single or dual rotary machines. For Capsule filling, the system can house single station or multi station machines. This Isolator is also compatible with line machine that are typically use post compression and capsule filling.
The Compression Isolator can be supplied with IsoSaans Smart LPU and IsoSaans Safe Dock assembly….. together the system ensures safe product charging assembly with zero risk for SBV assembly.



Special Features
  • In-house manufacturing capabilities for equipment’s & Isolators
  • Complete customization of products
  • Dual colour lights for regular & light sensitive drugs
  • All systems are supplied with a 12” tough screen colour HMI by default
  • Safe change push push HEPA filters (for negative pressure isolators   only)
  • Safe change gloves for all Isolators
Optional Features
  • Blower fail system that ensures negative
  • pressure despite of blower motor trip
  • Auto leak test cycles
  • Glove integrity testing
  • On-board VHP generator (for sterile Isolators)
  • 15” Windows IPC with SCADA
  • Flameproof or non flame proof systems
Optional Features
  • Inflatable gaskets
  • Exhaust filter box & wet scrubber
  • IsoSAAN © SBV suspension charging assembly
  • IsoSAAN © SBV floating disharging assembly
  • IsoSAANS smart LPU



System Information

Type : Rigid Negative Pressure
Air Flow Pattern : Turbulent at 20 – 25 ACPH
Operating Pressure : – 60 to – 100 Pascal’s
Processing Range : 1 Kg – 30 Kg
OEL Handling Range : OEL 3 to OEL 5

Ingress Options

In-Feed Pass Box : Up to 1 Kg, OEL 4
SBV Charging using LPU : Up to 30 Kg, OEL 5

Egress Option

BIBO Bags / Continuous Liners : OEL 3 up to 2 Kg.
BIBO Bags / Continuous Liners + Out Pass Box : OEL 4 up to 5 Kg
RTP Ports : OEL 5 up to 3 Kg.
SBV Discharge Uisng IPC : OEL 5 up to 30 Kg.

Compression Line-Machines

  • De Duster & Elevator
  • Metal Detector
  • Un-Formed Tablet Separator
  • BIBO Type Dust Extractor
  • Gravity & Force Feeder Attachment
  • Punch & Die Staging Area

Capsule Filling Line-Machines

  • Capsule Sorter / Elevator
  • Capsule Polisher & De-duster
  • Metal Detector
  • Unfilled Capsule Sorter
  • Deformed Capsule Separator

Compression / Capsule Filling Isolator Manufacturers, Suppliers, Navi Mumbai, India

Related products

Dissolution Tester

TABLET DISSOLUTION TESTER DS 8000+ WITH PISTON PUMP – LABINDIA

The Labindia DS 8000+ with Piston Pump is a semi-automatic dissolution testing solution designed for precise and efficient drug dissolution testing. Its mono shaft design allows easy switching between apparatus I and II, eliminating routine height validation checks as per pharmacopoeia requirements. The PP 08 Piston Pump, equipped with a chemically inert ceramic rotor, ensures compatibility with various media, including surfactants, and resolves absorption issues.

Dissolution Tester

TABLET DISSOLUTION TESTER DS 14000 (Basic) SMART – LABINDIA

The DS 14000 (Basic) SMART dissolution tester is the perfect solution for pharmaceutical laboratories, designed to assess tablet dissolution in compliance with international standards such as USP, BP, IP, and JP. Featuring a 12+2 vessel configuration and an automatic tablet dispenser, the device enables comparative studies while ensuring precise and efficient testing processes. It is an ideal choice for quality control and product development in the pharmaceutical industry.

Dissolution Tester

TABLET DISSOLUTION TESTER DS 8000 (BASIC) SMART – LABINDIA

The DS 8000 (Basic) SMART dissolution tester is a modern device that complies with international standards such as USP, BP, IP, and EP, providing high-precision drug dissolution analysis. The equipment is equipped with a 6+2 configuration water bath, an automatic tablet dispenser, and a digital temperature sensor to ensure strict control over the testing process. With auto-recovery capabilities and intelligent software, this is an ideal solution for pharmaceutical laboratories.

Table Press

FULLY COMPUTERIZED TABLET PRESS – FLUIDPACK

The fully computerized tablet press (ACT series) is a state-of-the-art single rotary tablet press machine designed for research and development (R&D) as well as small-scale production. Featuring advanced motorized systems, precision controls, and GMP-compliant design, this machine is ideal for producing high-quality single or bi-layer tablets.

Stability Chamber

ECOTRONIC WALK-IN HUMIDITY STABILITY CHAMBERS – NEWTRONIC

The ECOTRONIC walk-in humidity stability chambers are designed with advanced technology utilizing the principles of dew point control as per the Psychrometric Chart. This is an ideal solution for testing and maintaining humidity conditions in industries such as pharmaceuticals, food, and cosmetics.

Stability Chamber

PHOTO STABILITY CHAMBERS – NEWTRONIC

Newtronic's photo stability chambers are designed to meet light stability testing requirements in industries such as pharmaceuticals, cosmetics, food, and others. The chambers comply with ICH Q1B standards, ensuring efficiency, reliability, and safety.

Stability Chamber

Modular Walkin Chamber

CME’s Modular Walk-In chamber offers unmatchable flexibility in installation. The panelised construction is engineered to perform at demanding testing conditions offering highest reliability and performance. Besides modular construction, we also offer Walk-In chamber made from welded rigid panels.

Stability Chamber

WALK-IN DEEP FREEZERS – NEWTRONIC

Walk-In Deep Freezers are custom-designed and manufactured to meet customer-specific requirements for ultra-low temperature storage solutions.

PRODUCT VIEWED

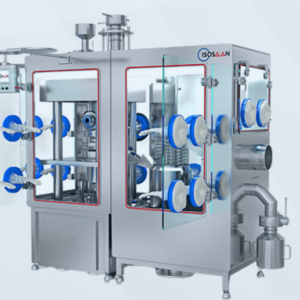

Compression / Capsule Filling Isolator
