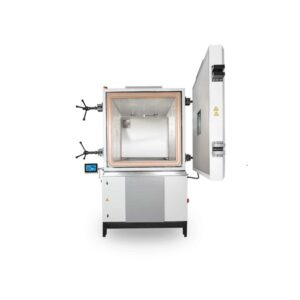

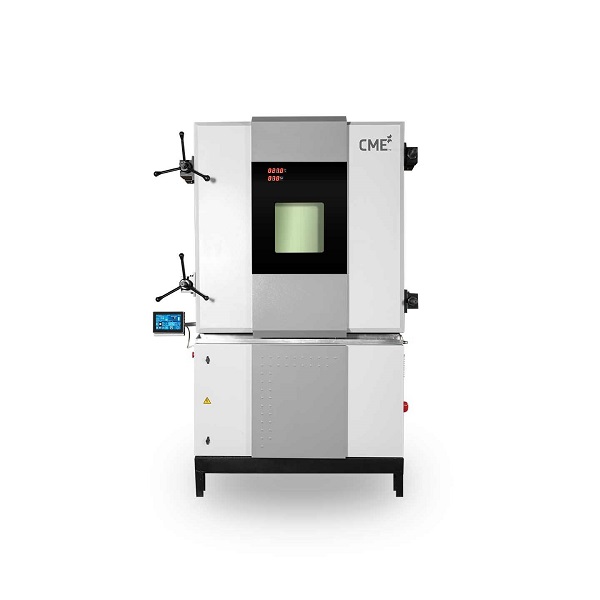

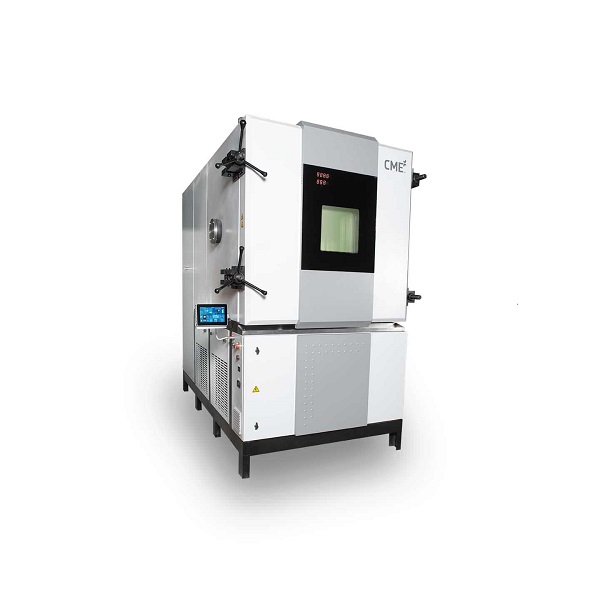

Walk-In Altitude, Temperature & Humidity Chamber (CATH)

Origin: India

Brand:

Category: Tags: , ,
Tags: , ,

CATH chamber can simulate pressure, temperature and humidity in its test space. It is also known as combined altitude, temperature and humidity chamber which is primarily used in R&D and testing of aerospace components. The chamber meets many international standards including MIL and RTCA.

Walk-In Altitude, Temperature & Humidity Chamber (CATH)

CATH chamber can simulate pressure, temperature and humidity in its test space. It is also known as combined altitude, temperature and humidity chamber which is primarily used in R&D and testing of aerospace components. The chamber meets many international standards including MIL and RTCA.







CATH chamber can simulate pressure, temperature and humidity in its test space. It is also known as combined altitude, temperature and humidity chamber which is primarily used in R&D and testing of aerospace components. The chamber meets many international standards including MIL and RTCA.

Aerospace & Defence applications demand high reliability under mixed environmental conditions where Pressure, Vacuum, Temperature & Humidity constantly affect a component’s performance. Our 3000 Litre combined Altitude, Temperature & Humidity (CATH) chamber simulates pressure up to 30 mbar in its test space between temperature range of -70°c to 100°c and humidity range of 10%RH to 95%RH, with average rate of cooling not less than 3°c per minute and average rate of heating not less than 3°c per minute. The test chamber can reach 30 mbar from ambient pressure in one 1 hour while maintaining the temperature of -20°c .

Description Specification
Workspace Dimensions – WxDxH
mm 1500 x 1500 x 1500
In 59 x 59 x 59
Volume
Ltr 3375
Cuft 119
Temperature Range
°C -70 To 100
°F -94 To 212
Ramp Rates
Cooling   °C/min 3
Heating   °C/min 3
Altitude Range
mbar Atmospheric to 30

Communication

Ethernet

Ethernet capability to remotely monitor and control the chamber.

climatic chamber with remote conditioning unit ethernet cmenvirosystems

USB

USB Type-A host port to connect a keyboard or mouse or download CSV data via pen drive [max 2GB] USB Type-B data port for connection to PC for software upgrade and access memory card storage

climatic chamber with remote conditioning unit usb cmenvirosystems

Web Server

Built-in web server allows remote view or control from any internet connected PC, tablet or smart phone

climatic chamber with remote conditioning unit web server cmenvirosystems

NI Lab view

The communication which used is MODBUS RTU protocol, which is an international standard for communication in process instrumentation and automation. Necessary changes to be made in the user’s software to communicate this in MODBUS RTU universal protocol. This feature can be used manual mode only.

climatic chamber with remote conditioning unit ni lab view cmenvirosystems

Hardware

Hardware

Enhanced with modular controller integrating multi-zone PID control and data acquisition. SIMATIC programmable logic controller. Touch screen controller, PLC and other controller components are of a generic make with an OEM software. Free software upgrades up to one year.

climatic chamber with remote conditioning unit hardware cmenvirosystems

Memory

SD card of 2GB memory will store all the test program data and also the diagnostic data. This card is accessible by USB and Ethernet.

climatic chamber with remote conditioning unit memory cmenvirosystems

Digital Events

1 digital output for switching test specimen via potential free contacts, load max. 24 VDC, 5A

climatic chamber with remote conditioning unit digital events cmenvirosystems

Programming & Report Generation

Programs

99 independent programs can be stored with name and number. Each of these programs have segments which can be looped to a previous segment and repeated up to 999 cycles, creating almost unlimited number of segments The chamber can be operated in manual mode, where the set point can directly be changed in the home screen The ramp rate can be set as a value in °C/min or ramp time Graphical representation of the temperature program The time is logged only when the set valve is within the band.

climatic chamber with remote conditioning unit programs cmenvirosystems

Trend Graph

Real time trend graph for temperature set value, temperature process value, humidity set value and humidity process value. Options of zoom in/out, pan and individual plot selection

climatic chamber with remote conditioning unit trend graph cmenvirosystems

Safety & Security

Security

Multi level security of guest, user, admin and factory level users with individual password protection All settings can be reset to factory defaults using admin login

climatic chamber with remote conditioning unit security cmenvirosystems

PID

6 zone based PID’s with auto recall of PID based on type of program, segment and zone can be set. Each of these PID’s can be set by using the auto tune feature or manually based on user’s requirements.

climatic chamber with remote conditioning unit pid cmenvirosystems

Process Mimic

Graphical representation of the working of the chamber, with live status of all the components, including the current temperature/humidity process values, compressor suction/discharge pressures and return gas temperature

climatic chamber with remote conditioning unit process mimic cmenvirosystems

Power Resumption Modes

In case of a power failure, option of conditional restart based on temperature/time or continuous

climatic chamber with remote conditioning unit power resumption modes cmenvirosystems

Service & Maintenance

Diagnostics
Event viewer will display a log of all errors/actions with a date and time stamp PLC inputs and outputs status will be indicated

test chamber for solar panels diagnostics cmenvirosystems

Service Monitor

Log of critical components life cycle with a predefined life cycle time and elapsed time in hours

test chamber for solar panels service monitor cmenvirosystems

Delay Start

Real time clock based, delayed start function

test chamber for solar panels delay start cmenvirosystems
