Drive-In Climatic Chamber for Vehicle testing

Origin: India

Brand:

Category: Tags: , ,

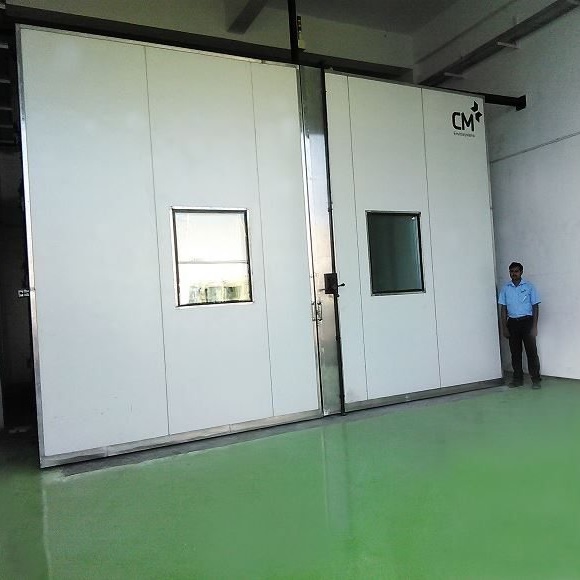

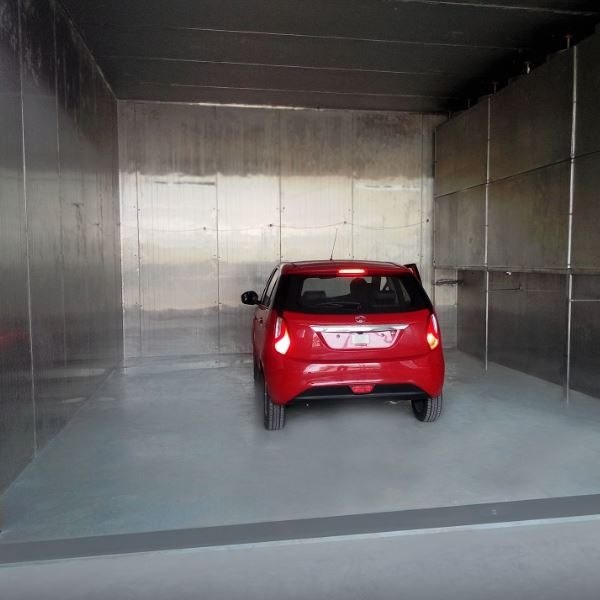

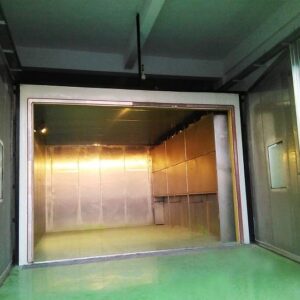

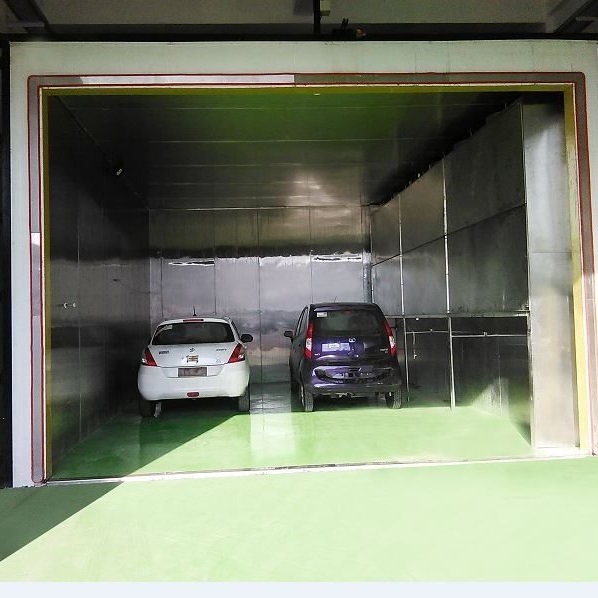

Over the years CME has designed and commissioned many Drive-In Chambers for Automobile Industry. Both Automobile manufacturers and its industry regulatory bodies have always upheld the proven reliability and assured performance of our chambers. The latest 1,40,000 Litres Drive-In Climatic Chamber is an example of one such recently commissioned mega project, which primarily simulates real environmental conditions in its test space to conduct wide range of test on live vehicles.

Drive-In Climatic Chamber for Vehicle testing

Over the years CME has designed and commissioned many Drive-In Chambers for Automobile Industry. Both Automobile manufacturers and its industry regulatory bodies have always upheld the proven reliability and assured performance of our chambers. The latest 1,40,000 Litres Drive-In Climatic Chamber is an example of one such recently commissioned mega project, which primarily simulates real environmental conditions in its test space to conduct wide range of test on live vehicles.



Over the years CME has designed and commissioned many Drive-In Chambers for Automobile Industry. Both Automobile manufacturers and its industry regulatory bodies have always upheld the proven reliability and assured performance of our chambers. The latest 1,40,000 Litres Drive-In Climatic Chamber is an example of one such recently commissioned mega project, which primarily simulates real environmental conditions in its test space to conduct wide range of test on live vehicles.

Description Specification
Workspace Dimensions – WxDxH
mm 5000 x 7000 x 4000
In 197 x 276 x 157
Volume
Ltr 140000
Cuft 4947
Temperature Range
°C -20 To 85
°F -4 To 185
Ramp Rates
Cooling   °C/min 15 W/O Load, 0.5 With Vehicle
Heating   °C/min 15 W/O Load, 0.5 With Vehicle

Communication

Ethernet

Ethernet capability to remotely monitor and control the chamber.

climatic chamber with remote conditioning unit ethernet cmenvirosystems


USB

USB Type-A host port to connect a keyboard or mouse or download CSV data via pen drive [max 2GB] USB Type-B data port for connection to PC for software upgrade and access memory card storage

climatic chamber with remote conditioning unit usb cmenvirosystems

Web Server

Built-in web server allows remote view or control from any internet connected PC, tablet or smart phone

climatic chamber with remote conditioning unit web server cmenvirosystems

NI Lab view

The communication which used is MODBUS RTU protocol, which is an international standard for communication in process instrumentation and automation. Necessary changes to be made in the user’s software to communicate this in MODBUS RTU universal protocol. This feature can be used manual mode only.

climatic chamber with remote conditioning unit ni lab view cmenvirosystems

Hardware

Hardware

Enhanced with modular controller integrating multi-zone PID control and data acquisition. SIMATIC programmable logic controller. Touch screen controller, PLC and other controller components are of a generic make with an OEM software. Free software upgrades up to one year.

climatic chamber with remote conditioning unit hardware cmenvirosystems

Memory

SD card of 2GB memory will store all the test program data and also the diagnostic data. This card is accessible by USB and Ethernet.

climatic chamber with remote conditioning unit memory cmenvirosystems

Digital Events

1 digital output for switching test specimen via potential free contacts, load max. 24 VDC, 5A

climatic chamber with remote conditioning unit digital events cmenvirosystems

Programming & Report Generation

Programs

99 independent programs can be stored with name and number. Each of these programs have segments which can be looped to a previous segment and repeated up to 999 cycles, creating almost unlimited number of segments The chamber can be operated in manual mode, where the set point can directly be changed in the home screen The ramp rate can be set as a value in °C/min or ramp time Graphical representation of the temperature program The time is logged only when the set valve is within the band.

climatic chamber with remote conditioning unit programs cmenvirosystems

Trend Graph

Real time trend graph for temperature set value, temperature process value, humidity set value and humidity process value. Options of zoom in/out, pan and individual plot selection

climatic chamber with remote conditioning unit trend graph cmenvirosystems

Safety & Security

Security

Multi level security of guest, user, admin and factory level users with individual password protection All settings can be reset to factory defaults using admin login

climatic chamber with remote conditioning unit security cmenvirosystems

PID

6 zone based PID’s with auto recall of PID based on type of program, segment and zone can be set. Each of these PID’s can be set by using the auto tune feature or manually based on user’s requirements.

climatic chamber with remote conditioning unit pid cmenvirosystems

Process Mimic

Graphical representation of the working of the chamber, with live status of all the components, including the current temperature/humidity process values, compressor suction/discharge pressures and return gas temperature

climatic chamber with remote conditioning unit process mimic cmenvirosystems

Power Resumption Modes

In case of a power failure, option of conditional restart based on temperature/time or continuous

climatic chamber with remote conditioning unit power resumption modes cmenvirosystems

Service & Maintenance

Diagnostics
Event viewer will display a log of all errors/actions with a date and time stamp PLC inputs and outputs status will be indicated

test chamber for solar panels diagnostics cmenvirosystems

Service Monitor

Log of critical components life cycle with a predefined life cycle time and elapsed time in hours

test chamber for solar panels service monitor cmenvirosystems


Delay Start

Real time clock based, delayed start function

test chamber for solar panels delay start cmenvirosystems
