Contained Transfer Solutiuons

Origin: India

Brand:

Category: Tag:
Tags:

Valve Position Sensors (Normal or Intrinsic Save) : 5 Nos
Valve Guiding Assembly : For accurate Docking / Undocking
Electro Pneumatic panel : For valve operations / machine integrations

Contained Transfer Solutiuons

  • Valve Position Sensors (Normal or Intrinsic Save) : 5 Nos
  • Valve Guiding Assembly : For accurate Docking / Undocking
  • Electro Pneumatic panel : For valve operations / machine integrations

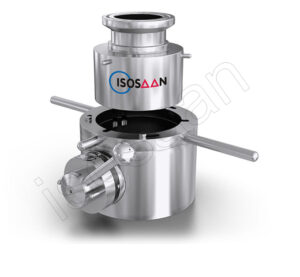

Split Butterfly Valve Type – 1
Type – 1 Manual
Containment OEL 4
MOC SS 316L + PTFE Seal
Size 1 Diameter 4” TC
TC Ferrule OD 119mm
Size 2 Diameter 2” TC
TC Ferrule OD 64mm
Split Butterfly Valve Type – 2
Type – 2 Automatic
Containment OEL 4
MOC SS 316L + PTFE Seal
Size 1 Diameter 4” TC
TC Ferrule OD 119mm
No. of Actuators 2 Nos

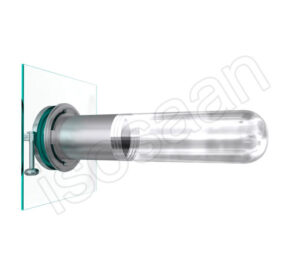

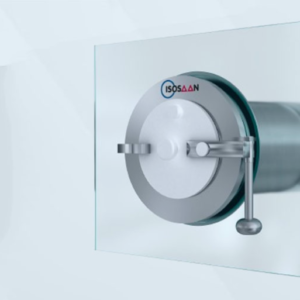

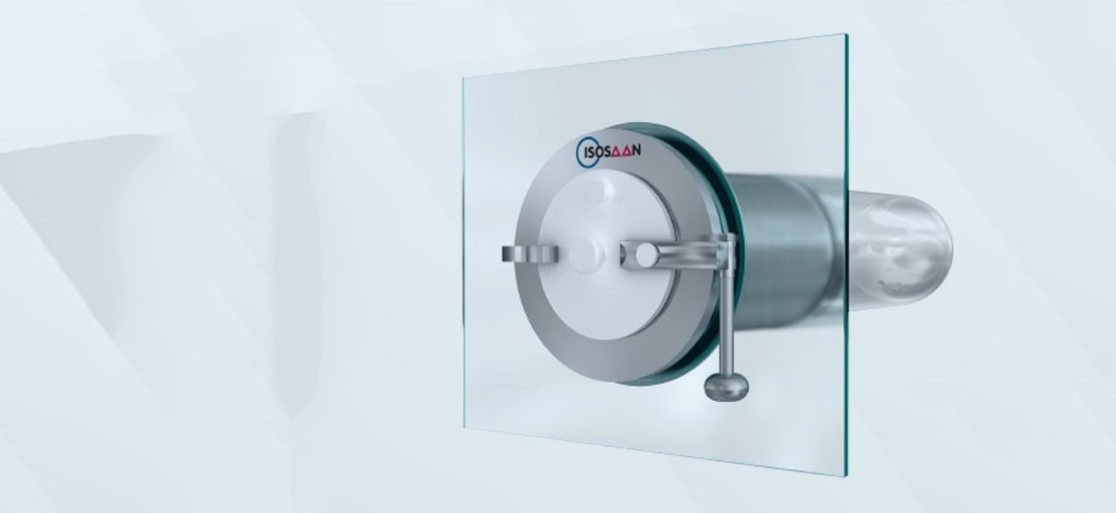

Rapid Transfer Port

Alfa Port SS 316L
Containment OEL 4
Size ID 190mm
Beta Port SS 316L
Closed Type Dia 190mm x 400mm Long
Open Type (BIBO) Dia 190mm x 150mm Long
